Wear-Resistant Strong Acid/Phosphoric Acid Cans Explosion-Proof Filling Machine for 30L

2025-07-03 16:17:07 glzon

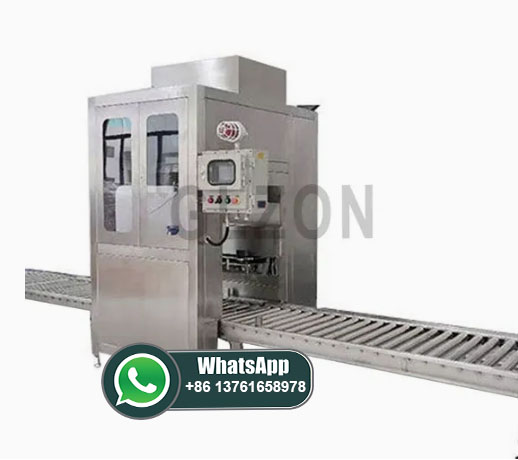

Explosion-Proof Filling Machine

Model NO.
GZM-30L
Type
Volumetric Filling Machine
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Single-Head
Feed Cylinder Structure
Single-Room Feeding
Dosing Device
Drum Barrel
Filling Principle
Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Linear
Packaging
Barrel
Packaging Material
Wood
Application
Food, Beverages, Daily Necessities, Chemicals
Core Components
Pressure Vessels, Pumps, Plcs, Gears, Bearings, Ge
Voltage
220V 50/60Hz
Applicable Industries
Hotels, Manufacturing Plants, Food and Beverage Pl
Filling Accuracy
0.2%
Transport Package
Wood
Specification
2600*1050*1800mm
Trademark
GLZON
Origin
Shanghai

Product Description



Product Description


Wear-Resistant Strong Acid/Phosphoric Acid Cans Explosion-Proof Filling Machine for 30L
Suitable for barrel shape



Wear-Resistant Strong Acid/Phosphoric Acid Cans Explosion-Proof Filling Machine for 30L                    10L                                                                30L                                                                   50L
Wear-Resistant Strong Acid/Phosphoric Acid Cans Explosion-Proof Filling Machine for 30L
                    200L                                                           1000L                                                         1000L

Product Parameters

Applicable materialsCoatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals and other liquids
Filling range(L)1-60L
power supplyAC380V 50/60Hz
Air pressure (Mpa)0.6-0.8MPA
Filling accuracy (%)±0.2%
Speed(can/hour)180-360 barrels(Depending on the material flow rate)
Materialsus304/sus316/carbon steel/PTFE

Product features

    ? The system adopts programmable PLC control, and the operation isguided by Chinese language, which is safe and reliable.
    ? Manual barrel loading, automatic filling, automatic conveying, manual capping, automatic positioning, easy to disassemble and wash
    ? The filling gun is manufactured with an integral process to prevent dripping and splashing; the quick-release connector is easy to disassemble and clean.
    ? The system target value can be set freely, and the height of the filling gun is adjustable, suitable for rapid filling of packaging barrels of various specifications.
    ? Good stability, reduce losses, save costs, improve  operating efficiency, and reduce manual operation pressure.
Wear-Resistant Strong Acid/Phosphoric Acid Cans Explosion-Proof Filling Machine for 30L
Detailed Photos


Wear-Resistant Strong Acid/Phosphoric Acid Cans Explosion-Proof Filling Machine for 30L
Features
Intelligent and efficient: filling is prohibited without a bucket on the weighing platform, differential pressure zero-time bucket collision protection, automatic
Automatic peeling, automatic detection to start filling, intelligent anti-fooling, fault detection, etc., can be implemented
Now a single person can operate filling and capping operations at the same time;

Accurate and fast: Equipped with large and small ball valve groups and double-stage filling guns, large, medium, small and trace quantities
Sectional design eliminates the impact of changes in incoming material flow rate on filling accuracy, making filling accurate
Leading the industry in accuracy and speed;
How to operate
Manually place the bucket on the weighing platform to quickly locate the counterpart - the system automatically detects the bucket position and fills the gun
Automatically insert into the bucket mouth - automatically peel - automatically open the filling gun and ball valve group to start filling
Loading---four-stage filling of large, medium, small and trace quantities---reach the target value---filling gun
Automatically close and rise outside the barrel---manually move to the lid lock area---press the [Lock lid] button
Pneumatic locking cover---manual palletizing
Wear-Resistant Strong Acid/Phosphoric Acid Cans Explosion-Proof Filling Machine for 30L

Wear-Resistant Strong Acid/Phosphoric Acid Cans Explosion-Proof Filling Machine for 30L
Touch screen PLC control
Touch screen, PLC, C3 level load cell, dual 6-bit high-precision weighing controller (sampling speed up to 128 times/second), and frequency converter to ensure filling quality and accuracy

Pneumatic filling
Computer weighing, submersible filling, frequency conversion three-speed adjustment. The filling volume can be set directly, easy to operate, and has a gap compensation function
Wear-Resistant Strong Acid/Phosphoric Acid Cans Explosion-Proof Filling Machine for 30L

Company Profile

Wear-Resistant Strong Acid/Phosphoric Acid Cans Explosion-Proof Filling Machine for 30L

Shanghai Guangzhi Automation Equipment Co., Ltd. is a domestic
high-tech enterprise located in Songjiang District, Shanghai. This is
Shanghai's large industry and large equipment manufacturing base.
"High excellence and high compatibility" is the manufacturing guideline
of Shanghai Guangzhi Instrument Equipment Co., Ltd. The company
has passed the IS09001 international quality system certification and
IS014001 environmental management system certification. The
mechanical equipment is gradually passing the "CE certification".
Shanghai Guangzhi Specializing in the production of packaging
machinery, customers are welcome to negotiate.



Factory strength display



Wear-Resistant Strong Acid/Phosphoric Acid Cans Explosion-Proof Filling Machine for 30L                                                                            Shipping scenario
Wear-Resistant Strong Acid/Phosphoric Acid Cans Explosion-Proof Filling Machine for 30LWear-Resistant Strong Acid/Phosphoric Acid Cans Explosion-Proof Filling Machine for 30L

                                                                            Component brand

Wear-Resistant Strong Acid/Phosphoric Acid Cans Explosion-Proof Filling Machine for 30L
Special note

Note: Our company reserves the right to update product designs and speci?cations at any time. The product information description on this page does not constitute any guarantee or commitment, and is not regarded as a product or service contract term.
