Shanghai Guangzhi’s emulsion filler achieves ±0.2% accuracy for 20-30L cans. Viscosity-adaptive filling, torque capping & CIP system. FDA/CE compliant.

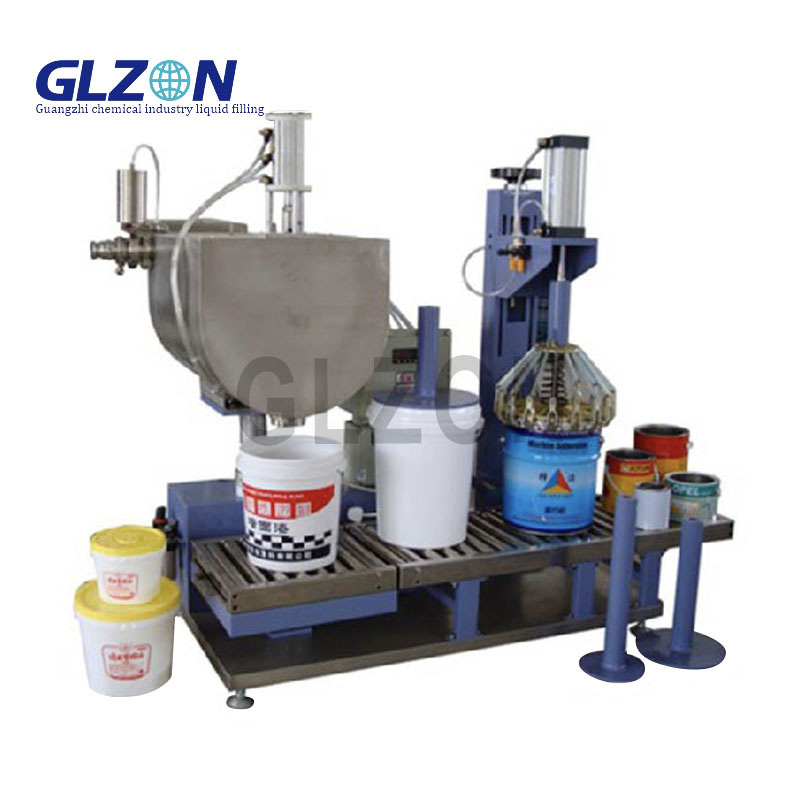

Shanghai Guangzhi Automation’s Emulsion Can Filling & Capping System masters the packaging of high-viscosity creams, lotions, and industrial emulsions (5,000-100,000 cP) into 20-30L cans. Integrating servo-piston metering (±0.2% accuracy), viscosity-adaptive flow control, and hermetic sealing, it delivers 15 cans/hour while eliminating product waste and ensuring GMP compliance.
1. Intelligent Viscosity Handling
Adaptive Piston-Auger Hybrid:
Handles viscosity range: 5,000–100,000 cP
Real-time shear rate control (50–5,000 s?1)
Thermal Management:
Heated hopper (20–60°C) for temperature-sensitive emulsions
±1°C stability via PID control
2. Precision Metering & Sealing
| Component | Technology | Performance |
|---|---|---|
| Filling | Servo-driven piston + Coriolis feedback | ±0.2% volumetric accuracy |
| Capping | Servo torque control (5–50 N·m) | ±2% torque accuracy |
| Anti-Drip System | Needle-valve retraction + air knife | Residual ≤0.1ml |
3. Sanitary Industrial Design
GMP Construction:
316L stainless steel contact surfaces
Radiused corners (R≥10mm)
Sloped drainage (3°)
CIP/SIP Ready:
4-nozzle spray ball system
<8 min cleaning validation
| Parameter | Specification |
|---|---|
| Filling Range | 20–30L (±0.2%) |
| Viscosity Range | 5,000–100,000 cP |
| Throughput | 15 cans/hour |
| Can Compatibility | ?250–350mm × H400–600mm |
| Cap Types | Lever lid/screw cap (70–120mm ?) |
| Power Supply | 380V/50Hz, 5.5kW |
| Air Consumption | 80 L/min @ 0.6MPa |
| CIP Cycle Time | <8 min (acid/alkali rinse) |
| Footprint (L×W×H) | 2800×1600×2200mm |
| Emulsion Type | Specialized Feature |
|---|---|
| Silicone Creams | Anti-foaming pulsed filling |
| O/W Lotions | Low-shear nozzle (≤500 s?1) |
| Industrial Greases | Heated auger (60°C) + deaeration |
| Pharmaceutical Gels | Aseptic cold-fill option |
10" Color HMI with Recipe Cloud
Viscosity/temperature profiles for 100+ formulations
Real-time OEE monitoring:
Fill accuracy tracking
Cap torque analytics
Predictive maintenance alerts
Industry 4.0 Integration
OPC UA for ERP/MES connectivity
Blockchain batch tracing (raw material to can)
Remote diagnostics via IIoT gateway
L'Oréal Contract Manufacturer (France):
Challenge: 4% overfill in 25L anti-aging creams
Solution: Coriolis feedback + viscosity compensation
Results:
? 99.8% fill accuracy
? Zero capping defects
? ROI in 7 months
Certifications:
FDA 21 CFR 210/211
CE Machinery Directive
ISO 22716 (Cosmetic GMP)
EHEDG EL Class I
Critical Upgrades:
| Option | Function |
|---|---|
| Nitrogen Blanketing | O? <0.1% for oxidation-sensitive formulas |
| In-line Homogenizer | Prevents phase separation |
| Vision Inspection | Fill level/cap alignment verification |
| AR Maintenance Guide | HoloLens-assisted servicing |
24/7 Global Response:
Remote troubleshooting via VPN
Critical Spares Dispatch:
Precision pistons
Torque sensors
Sanitary gaskets
Global delivery ≤48h from Shanghai/Paris/Chicago hubs
