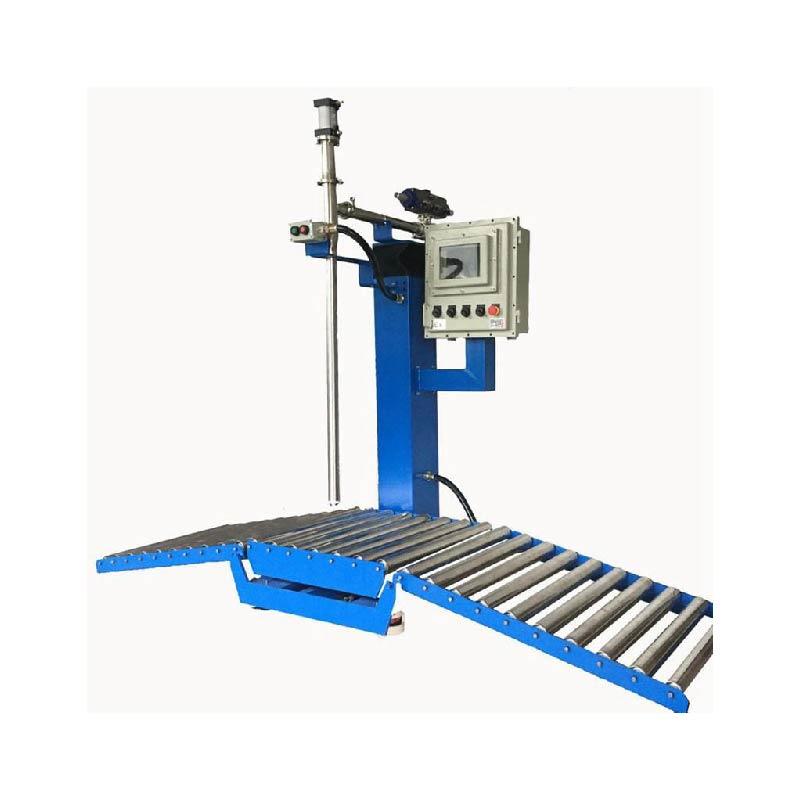

Basic parameters

Maximum weighing capacity: 400kg

Minimum sensitivity: 0.1kg

Filling error: less than ± 0.1%

Filling speed: approximately 40-60 barrels per hour (depending on feed flow rate)

Explosion proof level: EXdiaIIBT4

Control mode: 2nd gear control

Filling method: plug-in, above the liquid level

Scale platform size: 700 × 700mm

Empty barrel raceway: 700mm × 1000mm

Heavy barrel raceway: 700mm × 1000mm

Gun head pipeline: SUS304 stainless steel and PTFE

Structural material: SUS304 stainless steel

Drum material: SUS304 stainless steel

Pipeline pressure: 0.2-0.6 MPa (depending on material properties).

Material interface: DN40 quick installation clamp (water nozzle), can be provided according to user interface standards

Gas source interface: The user provides an 8mm gas pipe connector for quick connector connection

■ Power supply: AC220/50Hz (provided by the user to one side of the machine)

■ Gas source used: 0.4-0.8Mpa (user provided to machine side)

Usage temperature: -10 ℃ -50 ℃

Basic conditions: A horizontal and sturdy concrete ground, with a concrete thickness greater than 10cm.

6. Workflow

A. The operator moves the empty barrel to the weighing platform, so that the filling gun head is directly above the barrel mouth;

B. The operator presses the [Start] button;

C. The filling head is automatically inserted into the barrel and the weight of the container is checked to be qualified. The tare weight is automatically removed, and the ball valve and the bottom valve of the gun head are opened for quick filling. When the weight reaches a small material value, the filling speed decreases. When the weight reaches the target amount and reduces the advance amount, the two valves are fully closed. The filling head automatically lifts the gun out of the barrel, and the anti drip tray receives the liquid. Error detection and display are performed;

D. The operator moves the heavy bucket out of the weighing platform and turns the lid. A filling process is completed;

E. Repeat steps A-D for continuous filling.
