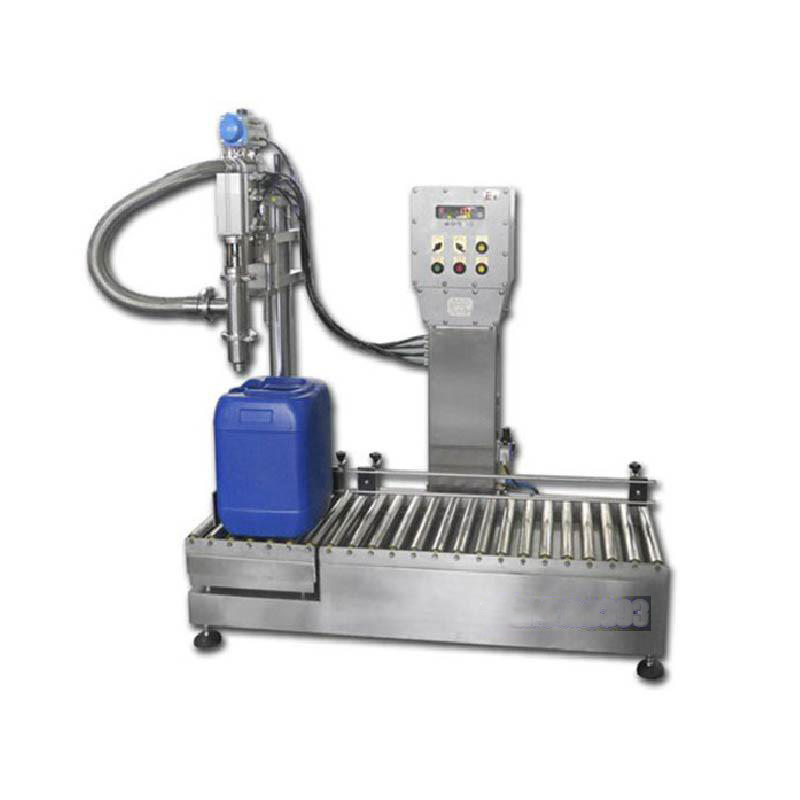

50L Acrylic acid Filling machine
50L Acrylic acid Filling machineBasic parametersMaximum weighing capacity: 100kg;Display division value: 20g;Filling error: ± 20g;Filling speed: approximately 300-500 barrels per hour/(25 liters depen
- Brand：
- Model：
50L Acrylic Acid Filling Machine
Zero Polymerization ? Cryogenic Inerting ? ±0.1% Accuracy
For Monomer, Glacial & Inhibited Grades (MEHQ/HQ)
Shanghai Guangzhi Automation’s GZ-AA50 Series sets the global standard for safe filling of 50L containers with acrylic acid – one of industry’s most aggressive monomers. Featuring zirconium wetted paths, dynamic inhibitor dosing (±50 ppm MEHQ), and -30°C nitrogen blanketing, this ATEX/SIL 3-certified system eliminates polymerization risks, prevents vapor ignition, and achieves unmatched ±0.1% gravimetric accuracy for chemical and acrylate plants.
Core Innovations for Acrylic Acid Hazards
? Polymerization Suppression
Chilled paths (-10°C) + real-time temp monitoring (<5°C deviation)
Auto MEHQ/HQ dosing (±50 ppm) with HPLC validation
? Corrosion Immunity
Zirconium (Zr702) or tantalum fluid paths – 0.0 mm/year corrosion rate
Ceramic-coated valves resistant to glacial acid (99.5% purity)
? Explosion Protection
ATEX Ex db IIC T6 (Group IIB) + vapor-tight containment
Static dissipation <10? Ω (MIE = 0.1 mJ)
? Oxygen-Free Transfer
-30°C dew point N? blanket (<1 ppm O?)
Double mechanical seals with N? purge
Technical Specifications
*Table: GZ-AA50 Critical Performance Metrics*
| Parameter | Specification | Acrylic Acid-Specific Protection |
|---|---|---|
| Accuracy | ±0.1% (load cell gravimetric) | Prevents off-spec batches |
| Throughput | 20 containers/hour (50L) | |
| Temp Control | -10°C to 10°C (±0.5°C) | Suppresses exothermic polymerization |
| Inhibitor Dosing | MEHQ/HQ: 50–500 ppm (±50 ppm) | HPLC-validated concentration |
| Material Contact | Zirconium Zr702 / Tantalum / Kalrez? 6375 | 0% corrosion (ASTM G31) |
| O? Control | <1 ppm (redundant sensors) | Prevents peroxide formation |
| Power | 480V/60Hz, 8.5 kW (Ex d motor) | IP66 / Ex db IIC T6 |
| Safety Integrity | SIL 3 (IEC 61511) | Auto shutdown on ΔT/ΔP anomalies |
| Containment | Negative-pressure isolator (OEB-4) | Operator protection |
| Compliance | ATEX, IECEx, ASME B31.3 | OSHA 1910.119 (PSM) |
Solve Critical Acrylic Acid Challenges
| Hazard | GZ-AA50 Solution | Result |
|---|---|---|
| Runaway Polymerization | Chilled zirconium path + MEHQ control | Zero reactor pipe plugs |
| Vapor Explosion | Vapor-tight dome + static control | LEL maintained <25% |
| Glacial Acid Corrosion | Tantalum valves/seals | 0.00 mm/year corrosion rate |
| Inhibitor Degradation | UV-shielded inhibitor tanks | MEHQ efficacy >99% over 90 days |
| Operator Exposure | Glovebox + SCBA integration | 0 ppm airborne exposure |
Industry-Proven Applications
Monomers: Inhibited acrylic acid (99% purity)
Esters: Methyl acrylate, butyl acrylate filling
Superabsorbents: SAP production (precursor)
Water Treatment: Acrylic acid for scale inhibitors
Certifications & Compliance
ATEX 2014/34/EU: Ex db eb ib IIC T6 Gb
IECEx IEC 60079-0/1/7/31
ASME B31.3 Process Piping (Category M Fluid)
NACE MR0175 (H?S service)
US EPA 40 CFR Part 68 (PSM for flammables)
APPLICABLE BARREL TYPE
