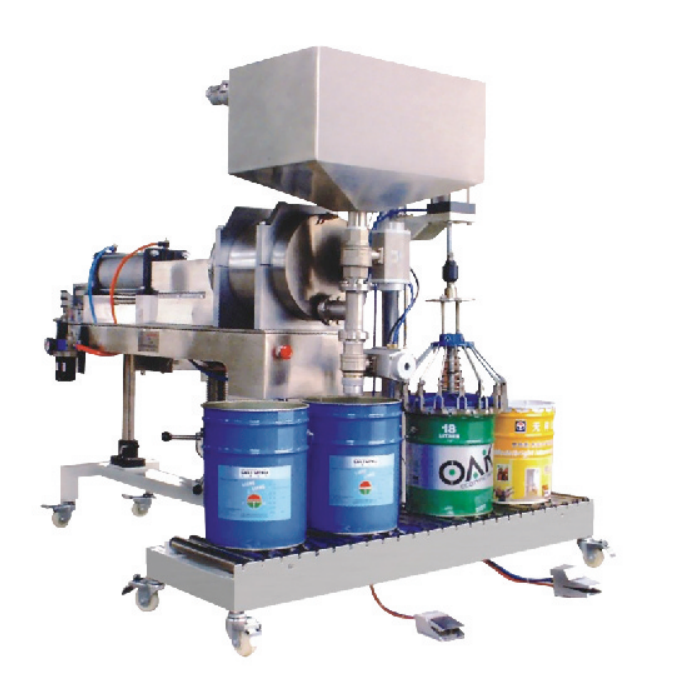

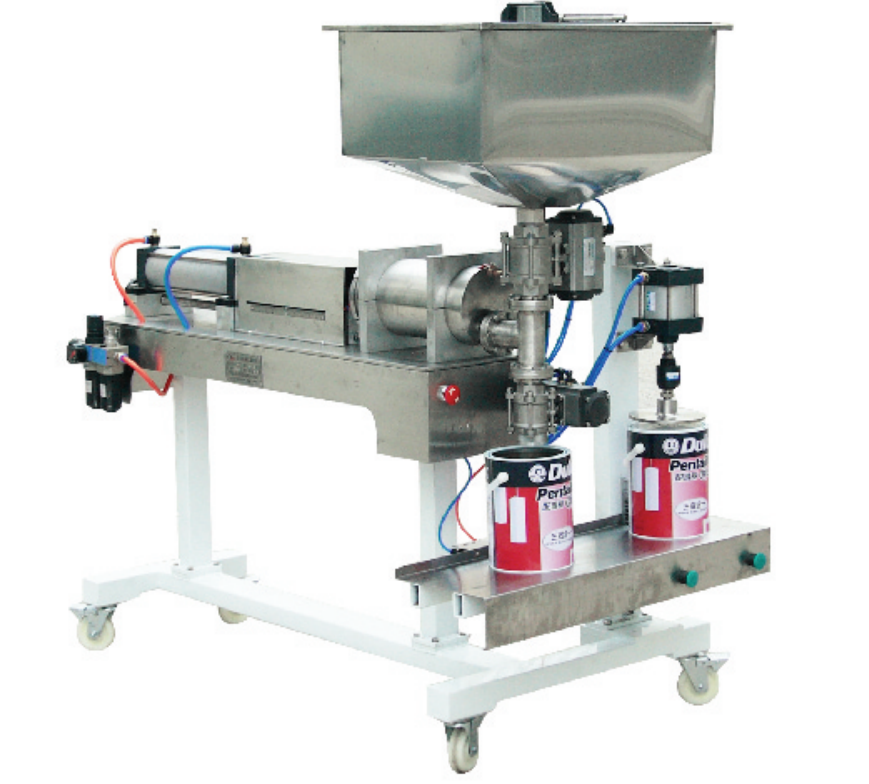

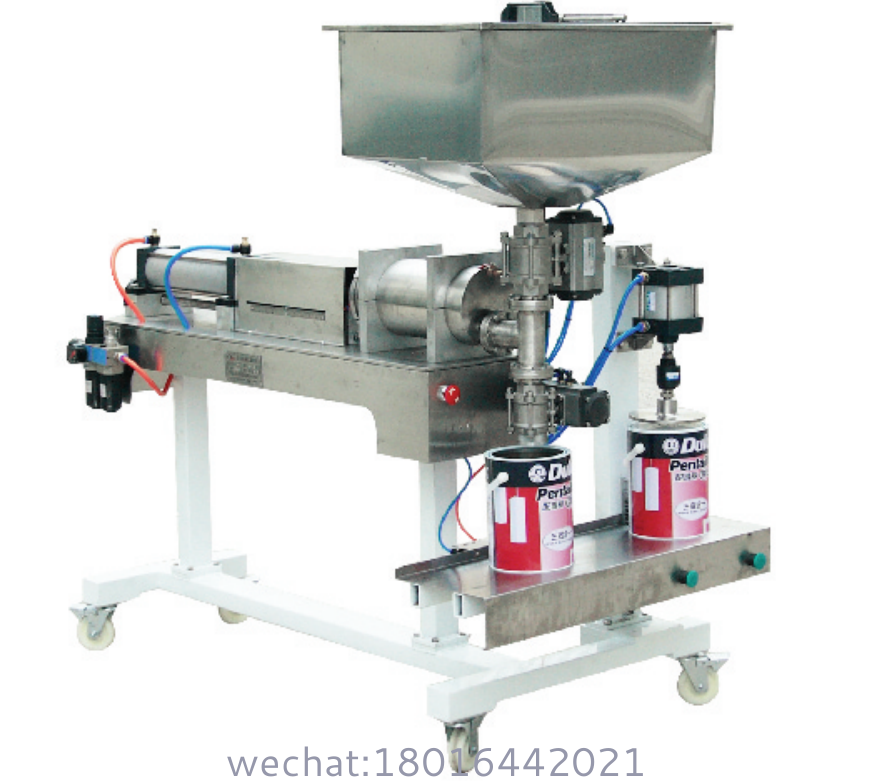

1-5L paint coating Filling machine

1-5L /10-20L paint coating Filling machineA piston filling machine is a type of filling machine that fills high concentration fluids. It uses a three-way principle of a piston and a rotary valve drive

  • Brand: glzon
  • Model: GZM_10

1–5L Paint & Coating Filling Machine

Splash-Free ? ±0.5% Accuracy ? 120 Containers/Hour
For Water-Based, Solvent-Borne, UV-Curable & Metallic Coatings

Shanghai Guangzhi Automation’s GZ-PicoFill Series delivers laboratory-grade precision for filling cans, tins, and jugs with complex coatings. Featuring anti-drip nozzles, auto-viscosity compensation (50–100,000 cP), and ATEX/CE compliance, this system eliminates splatter, reduces waste by 18%, and handles rapid SKU changes – ideal for automotive, industrial, and decorative paint producers.

coating can filler


Key Innovations

Zero-Splatter Nozzle
PFA-coated retractable lance + vacuum assist → <0.1mL residue (no wipedown needed).
Smart Viscosity Control
Auto-adjusts flow rate for metallics/thixotropic gels → maintains ±0.5% accuracy.
Rapid Color Change
Quick-CIP cleans in <2 mins → saves 85% solvent during switchovers.
Explosion Safety
ATEX Zone 2 option (Ex nA IIB T4) for solvents (flash point <23°C).
Container Flexibility
Tool-free changeover: cans, plastic jugs, tin containers (1–5L).


Technical Specifications

Table: GZ-PicoFill Performance Matrix

ParameterStandard ModelATEX ModelHigh-Viscosity Model
Accuracy±0.5% (volumetric)±0.6%±0.8% (piston pump)
Speed120 containers/hour100 containers/hour80 containers/hour
Viscosity Range50–50,000 cP50–10,000 cP500–100,000 cP
Material Path316L SS / PTFE / EPDM316L SS / Kalrez?Hardened steel / PTFE
Power220V/50Hz, 1.8 kW220V/50Hz, 2.2 kW380V/50Hz, 3.0 kW
Nozzle OptionsStandard, foaming, metallicStatic-dissipativeWide-bore (20mm)
ComplianceCE, UKCAATEX, IECExOSHA 1910.106
Changeover Time45 sec (container type)60 sec45 sec

Industry-Specific Solutions
