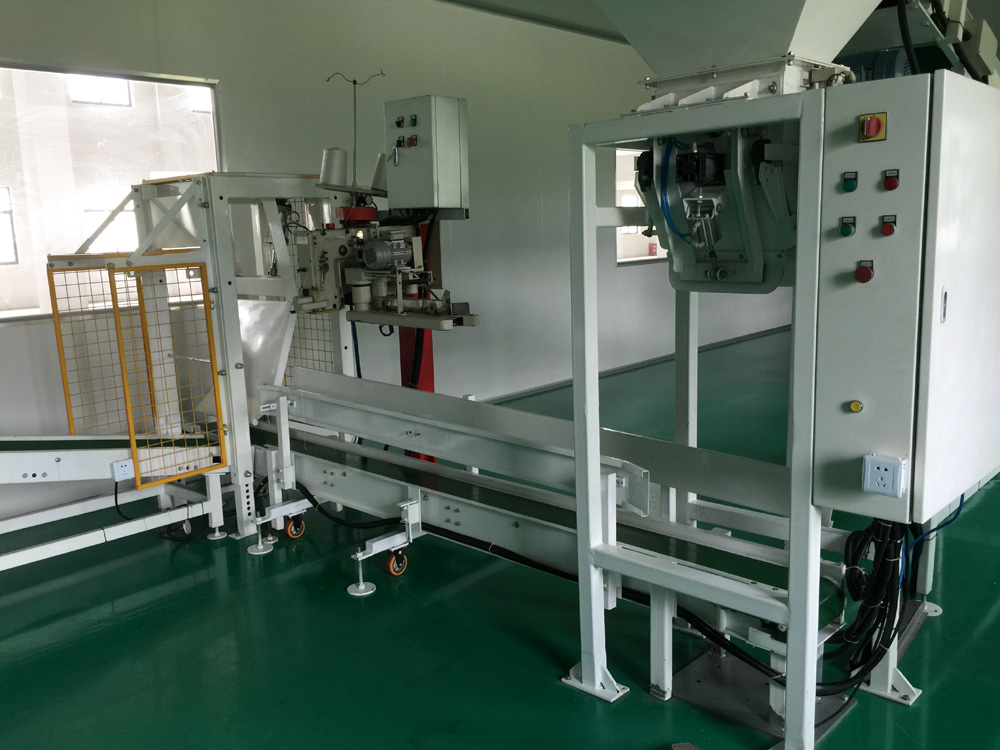

Open bag packaging machines are divided into two types: net weight type and gross weight type:The net weight type is usually suitable for granular materials and is characterized by fast speed and high
| Parameter | Standard | High-Capacity | Test Standard |
|---|---|---|---|
| Bag Weight Range | 10-50 kg | 25-100 kg | OIML R61 |
| Filling Accuracy | ±0.3% | ±0.2% | ISO 2378 |
| Max. Speed | 240 bags/h | 200 bags/h | EN 619 |
| Bag Dimensions | H: 600-1200 mm, W: 300-600 mm | ISO 6590-2 | |
| Dust Emission | ≤12 mg/m3 | ≤8 mg/m3 | NIOSH 0600 |
2.1 Automated Bag Handling
Bag Feeding: Robotic suction system (99.8% success rate)
Bag Opening: Pneumatic venturi nozzles (0.6 MPa)
Positioning Accuracy: ±0.5 mm (laser-guided)
2.2 Precision Filling
Gravimetric System:
Load cell capacity: 150 kg (0.02% FS accuracy)
Feed gate control: Servo motor (0.1s response)
Compaction: Dual vibratory paddles (3-10 Hz adjustable)
2.3 Sealing Options
| Method | Technical Specification |
|---|---|
| Heat Sealing | 50-300°C PTFE-coated bands |
| Sewing | 7 stitches/sec industrial head |
| Stapling | Stainless steel staples (FDA grade) |
| Component | Specification | Compliance |
|---|---|---|
| Material contact parts | 304 stainless steel (Ra≤0.8μm) | FDA 21 CFR 177.2600 |
| Frame | S355J2 carbon steel | ISO 12944 C4 |
| Electrical protection | IP65 enclosure | IEC 60529 |
| Power Consumption | 5.5 kW (380V±10%, 50/60Hz) | IEC 60034-30 |
| Application | Technical Adaptation | Certification |
|---|---|---|
| Fertilizers | Corrosion-resistant coating | ISO 12944 C5-M |
| Animal Feed | ATEX-compliant design (Zone 22) | IECEx |
| Building Materials | Abrasion-resistant liners (HRC 65) | EN 12407 |
| Food Products | CIP washdown (IP69K) | EHEDG EL-A |
| Metric | GZ-OM500 | Industry Average |
|---|---|---|
| Labor Requirement | 1 operator | 3-4 operators |
| Bag Rejection Rate | ≤0.5% | 2-4% |
| Changeover Time | <2 min | 15-30 min |
| Energy Efficiency | 0.28 kWh/ton | 0.45-0.60 kWh/ton |
Safety: ISO 13849-1 PL d, ANSI/ISA 84.01
Explosive Areas: ATEX II 3D, IECEx T4
Weighing: MID Class Y(b)
Quality: ISO 9001:2015, ISO 45001:2018
DustLock? Containment System (Patent CN/ZL202310XXXXX):
Telescopic dust skirt with air curtain
99.2% capture efficiency (NIOSH 0600 verified)
Smart Bag Recognition:
RFID tag detection for batch tracking
Auto-rejection of damaged bags
Energy Recovery:
Regenerative braking reduces 25% power consumption
