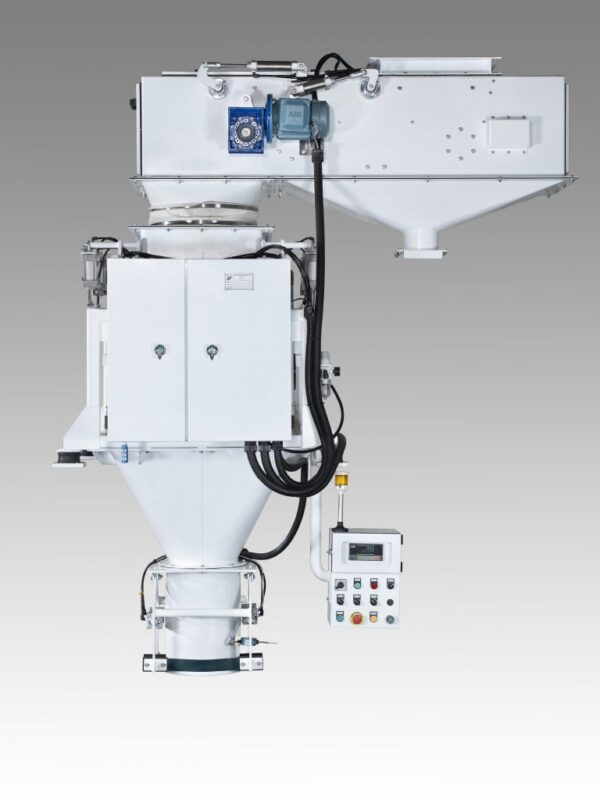

This simplex net weigher is designed for high speed bagging as it has an integral internal weigh hopper for weighing and discharge into waiting empty bags below after clamping. Each weighment is pre-w
| Parameter | Standard | Precision Model | Test Standard |
|---|---|---|---|
| Bag Capacity | 500-2500 kg | 1000-3000 kg | OIML R61 |
| Weighing Accuracy | ±0.1% FS | ±0.05% FS | ISO 2378 |
| Throughput | 28 bags/h | 22 bags/h | EN 619 |
| Belt Width | 1200 mm | 1500 mm | DIN 22101 |
| Material Density | 300-2000 kg/m3 | ISO 3923-1 |
2.1 Precision Belt Feeder
Belt Design:
5-ply EP630/4 rubber (Abrasion resistance: 150 mm3)
Cleated options (15-60 mm height) for inclined conveying
Drive System:
45 kW IE5 motor + Frequency inverter (0.01 Hz control)
Load cell range: 5000 kg (±0.02% FS)
2.2 Net Weighing Technology
Multi-Sensor Array:
4 x Shear beam load cells (IP68)
Real-time drift compensation
Dust Containment:
Telescopic dust skirt + air knife system
Containment efficiency: 99.9% (NIOSH 0600)
2.3 Control System
PLC: Rockwell ControlLogix 5580
Smart Functions:
Predictive material flow modeling
Auto-tare for bag variations (±3% weight)
Seismic disturbance rejection
| Component | Specification | Compliance |
|---|---|---|
| Belt material | FDA-grade UHMWPE (option) | USDA/3-A Sanitary |
| Structural frame | S355MC steel (ISO 12944 C5-M) | FEM 1.001 Sec.5 |
| Electrical protection | IP66/ATEX Zone 22 | IEC 60079-31 |
| Power Consumption | 42 kW (peak) / 0.35 kWh per ton | IEC 60034-30-1 |
| Material | Technical Adaptation | Certification |
|---|---|---|
| Plastic Pellets | Anti-static belt (10? Ω) | NFPA 77 |
| Food Granules | Sanitary design (Ra≤0.4μm) | EHEDG Type EL-A |
| Mineral Sands | Wear-resistant liners (Hardox 500) | ASTM A514 |
| Combustible Dust | Explosion venting (EN 14491) | ATEX II 3D |
| Metric | GZ-NBS2500 | Screw Feeder Systems |
|---|---|---|
| Filling Time (2000kg) | 4.2 min | 6.5-9 min |
| Product Degradation | ≤0.1% | 0.8-1.5% |
| Accuracy (1500kg load) | ±1.5 kg | ±5-8 kg |
| Energy Consumption | 0.38 kWh/ton | 0.65-1.0 kWh/ton |
Weighing: MID 2014/32/EU Class F1 (Trade-approved)
Safety: ISO 13849-1 PL e, ANSI/ASME B30.26
Explosive Areas: ATEX II 2/3D, IECEx Ex db
Structural: EN 1993-1-1 (Eurocode 3)
