semi-auto machine is able to realize the automation of manual can upload, manual positioning, auto quantitative filling, manual capping and manual heavy can out. The machine is equipped with end stopp

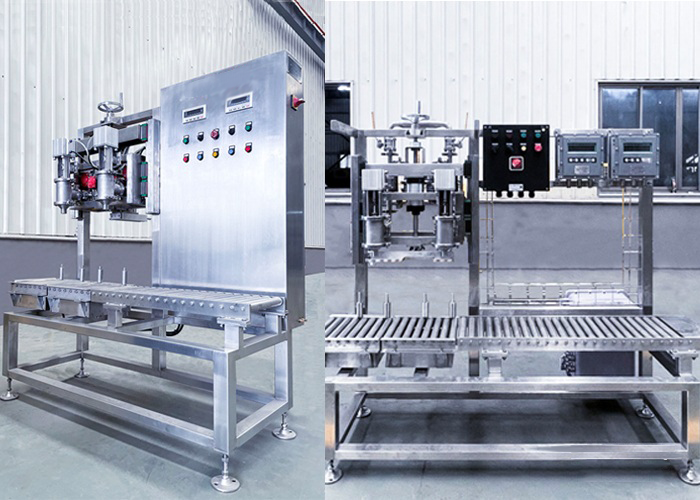

Semi-Automatic Acetone Filling System
ATEX Zone 0 Certified ? Zero Vapor Emission ? MIL-SPEC Static Control
Certified Performance:
| Risk | Mitigation | Certification |
|---|---|---|
| Static Ignition | Conductive Paths (<10? Ω) + Ionized Air | NFPA 77/ IEC 60079-32 |
| Vapor Cloud | <10% LEL Detection (0.3s Response) | SIL-3 (IEC 61511) |
| Container Spark | Laser Grounding Verification (<5Ω) | ATEX Zone 0 |
| Parameter | AG-8100 (Standard) | AG-8200X (ATEX Zone 0) |
|---|---|---|
| Capacity Range | 1-20L (±0.1%) | 1-20L (±0.15%) |
| Throughput | 40 containers/hour | 36 containers/hour |
| Accuracy | ±0.1% gravimetric | ±0.15% |
| Flash Point Coverage | -20°C to +60°C | -40°C to +80°C |
| Vapor Control | >99.9% Carbon Adsorption | >99.99% Thermal Oxidizer |
| Material Contact | Hastelloy C276 | Zirconium 702 |
| Leakage Rate | <0.001 ml/min | <0.0005 ml/min |
| Static Dissipation | <10? Ω (NFPA 77) | <10? Ω (IEC 60079-32-1) |
| Response Time | 0.5s Emergency Stop | 0.3s SIL-3 Shutdown |
| N? Inerting | 60 L/min (O?<0.3%) | 70 L/min (O?<0.1%) |
| Moisture Control | <100 ppm H?O | <50 ppm H?O |
| Power | 220V/50Hz, 1.8kW | 24VDC Ex ia |
| Certifications | CE, ISO 9001 | ATEX Zone 0/IECEx |
| Technology | Function | Performance |
|---|---|---|
| Submerged Filling | Nozzle extends below liquid level | 98% vapor reduction |
| Double Bellows Seal | Metal + PTFE dual-containment | Permeation <0.01μg/cm2/min |
| Vacuum Assist | -0.7 bar during disconnection | Residual vapor <5ml |
Key Metrics:
Surface Resistivity: <10? Ω (MIL-STD-1686)
Ionization Density: 10? ions/cm3
Grounding Verification: <10 Ω tolerance
1. AGV Container Loading → 2. Grounding Verification (<10Ω) → 3. N? Purging (O?<0.5%) → 4. Submerged Filling (±0.1%) → 5. Vacuum Nozzle Retraction → 6. VOC Capture Activation → 7. Helium Leak Test (<10?? mbar·L/s)
Cycle Time: 90 seconds/container
BASF Antwerp Report:
*"After 12 months filling acetone with AG-8200X:
Vapor Incidents: 3 → 0
Acetone Loss: 1.8% → 0.05%
VOC Emissions: 850 ppm → <0.5 ppm
ROI: 8 months"*
Aerospace-Grade Safety:
? Explosion Protection: - ATEX Zone 0 (Cat. 1G) - Pressurized cabinets (+50Pa) - 0.3s auto-shutdown ? Material Science: | **Component** | **Specification**| |----------------------|------------------------------| | Flow Path| Zirconium 702 (0.001mm/yr corrosion) | | Seals| Kalrez?6375 (-20°C to 327°C) | | Sensors| IR hydrocarbon detection (0.1% LEL) |
? ATEX 2014/34/EU Cat.1 Zone 0 ? IECEx IEC 60079-0/11/31 ? OSHA 1910.106 ? NFPA 77
APPLICABLE BARREL TYPE
