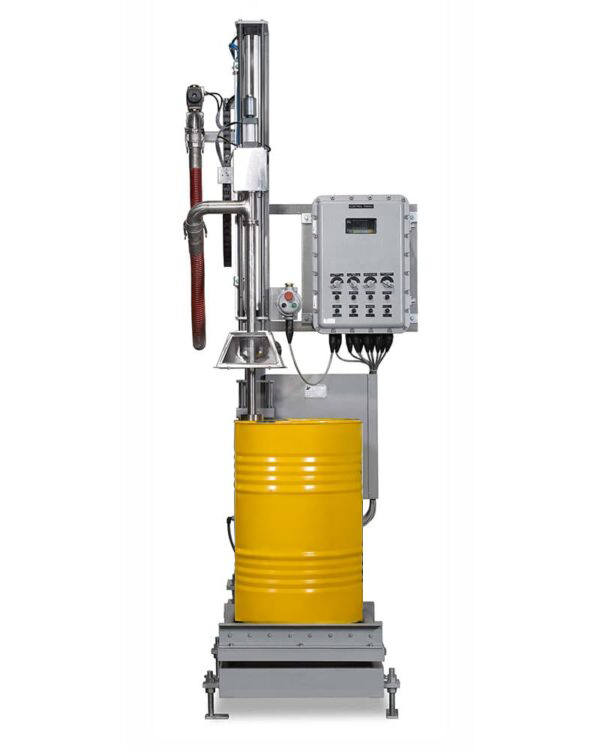

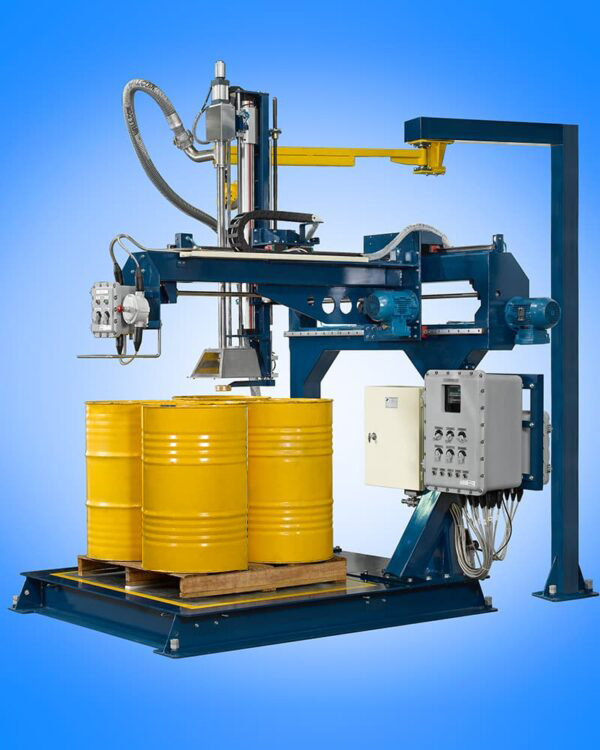

Semi Auto Ex-Proof Pallet IBC/Drum Filler

Drum on Pallet Explosion Proof Filling Machine is wisely used to fill flammability products. Whole filling machine provide explosion proof, can be used in hazardous environment. Automatic filling lanc

  • Brand: glzon
  • Model: GZM_1000L

Product Introduction: GZ-EX Series Semi-Auto Explosion-Proof IBC/Drum Filler

ATEX-Certified Precision for Hazardous Bulk Liquid Transfer
Shanghai Guangzhi Automation’s GZ-EX Series delivers safe, semi-automated filling of IBCs (1,000L) and drums (200L) in Zone 1/21 explosive environments. Combining ±0.25% gravimetric accuracy, nitrogen inerting, and vapor containment, this system achieves 15 IBCs/hour or 40 drums/hour while eliminating ignition risks – engineered for solvents, chemicals, and flammable liquids requiring ATEX compliance.


Core Explosion-Proof Technologies

FeatureSpecification
ATEX/IECEx CertificationII 2G Ex db ib mb IIB T4 Gb
Vapor ContainmentSealed shroud with N? purging (O? <5%)
Static ControlGrounding clamps (<10? Ω resistance)
Drip-Free FillingRetractable lance + vacuum suction (99.97% recovery)
Intrinsic SafetyPressurized control panel (IP66 Ex d)

Technical Specifications

ParameterIBC Totes (1,000L)Drums (200L)
Accuracy±0.25% (gravimetric)±0.3%
Throughput15 units/hour40 units/hour
Filling Speed20–150 L/min10–80 L/min
Residual Loss<0.03%<0.05%
Nitrogen Consumption12 Nm3/hour (99.5% purity)
Material CompatibilityLiquids: 1–100,000 cPFlammables (FP <21°C)
Power Supply380V/50Hz, 4.0 kW + 0.7 MPa air (ATEX)
ComplianceATEX 2014/34/EU, IECEx, ISO 80079

Operational Workflow

  1. Container Placement: Operator positions IBC/drum in vapor containment zone.

  2. Purge & Seal: N? displaces oxygen → shroud seals.

  3. Precision Filling: Load-cell controlled dosing (±0.25%).

  4. Drip Recovery: Lance retracts with vacuum suction.

  5. Vapor Evacuation: Residual vapors vented to scrubber.


Safety-Critical Components

ComponentEx-Proof StandardFunction
Control PanelEN 60079-0:2018 (Ex d)Ignition-proof enclosure
SensorsEN 60079-11:2012 (Ex ia)Intrinsically safe circuits
Filling ValvesAPI 607 fire-safePrevents leakage
Emergency StopISO 13849-1 PLdSIL-2 certified

Industry Applications

IndustryMaterials FilledSafety Features
ChemicalAcetone, toluene, monomersDouble N? blanket
Paints/ResinsSolvent-based coatingsStatic-dissipative lances
PharmaEthanol-based intermediatesGMP-compliant materials
BiofuelsEthanol, biodieselFlashpoint monitoring

Advantages vs. Manual Filling

MetricGZ-EX SystemManual Process
Operator SafetyZero vapor exposureHigh risk
Product Loss<0.03% residual3-5% spillage
ComplianceFull ATEX/IECExFrequent violations
ROI Period6-10 monthsN/A


APPLICABLE BARREL TYPE

Drum Filling Machine

COMPANY PROFILE

Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.

We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.

Drum Filling Machine

Company Certificate

Drum Filling Machine

Our office and workshop

Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance

Drum Filling Machine


This is a partial Drum Filling MachineDrum Filling Machine

service for us

in China.

Over 30 years of experience, every time we produce in

Shanghai, our friends can visit our factory at any time.






Brand components

We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.

Drum Filling Machine


Our service

Complete solution provided

Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.


Duty after death

Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.


Technology group

We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.


Successful collaboration

Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.

packge and delivery

Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose

Drum Filling Machine

FAQs

Our in-house designers and engineers have produced countless great designs for customers from different industries

1
Can we get your free samples?
Samples can be offered for free. But courier cost for the samples should be at buyer's account.
2
Can you print our LOGO in flatware set?
Yes.we can print the logo on the flatware set as your requirements.Embossed, laser,stamped and engraved are available.
3
How long is the delivery time of sample?
Samples from stock can be sent within 1-3 days. New produced samples will be sent within 5-15 days.
4
Is there any MOQ for what I purchase?
Yes, we have MOQ for mass production. Different item with different package has different MOQ. Please contact us for more details.
5
Do you accept OEM or ODM services?
OEM and ODM are accepted!
6
What is 18-10 Stainless Steel Flatware?
18-10 refers to the composition of stainless steel. It contains 18% chromium and 10% nickel for excellent strength and corrosion resistance.

CONTACT US

Skype: fayfaywang1027

QQ: 429682794

Whatsapp: 008618016442021

E-mail: glzoncn@163.com

https://glzon.en.alibaba.com/

cel: +0086 18016442021
