Functional features:Product Settings - Store weight settings and related filling parameters for 20 different products, easy to operate and learnMulti stage filling - can be divided into two stages (fa

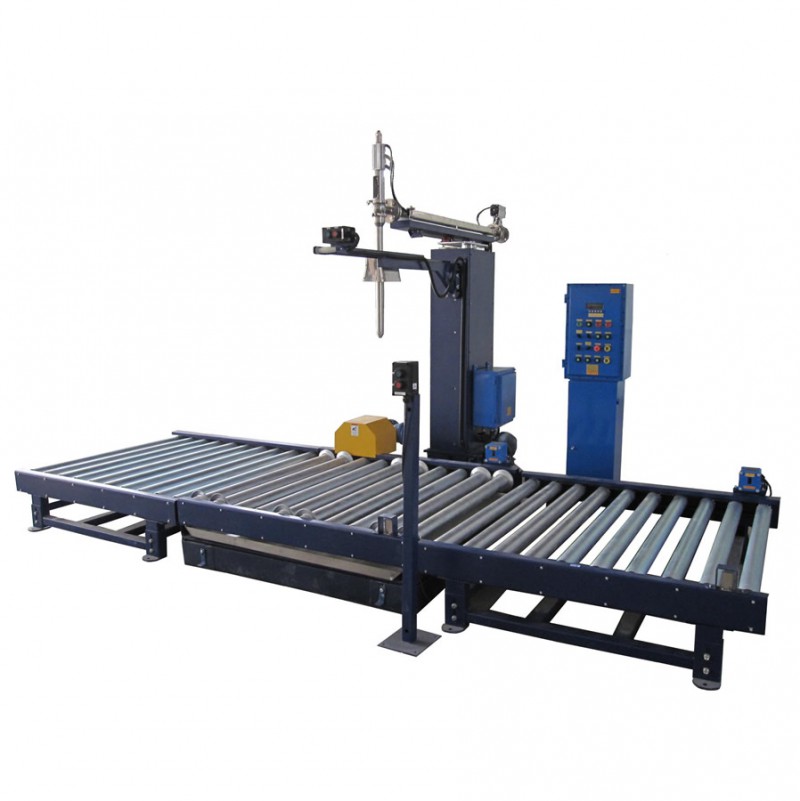

1000L Acetone Filling Machine
ATEX Zone 0 Certified ? 99.99% VOC Capture ? Military-Grade Static Control
| Parameter | AG-10100 (Standard) | AG-10200X (ATEX Zone 0) | AG-10300C (Cryogenic) |
|---|---|---|---|
| Capacity | 950-1050L (±0.1%) | 950-1050L (±0.15%) | 950-1050L (±0.08%) |
| Throughput | 18 IBCs/hour | 16 IBCs/hour | 15 IBCs/hour |
| Accuracy | ±0.1% mass flow | ±0.15% | ±0.08% |
| Flow Rate | 300 L/min | 280 L/min | 250 L/min |
| Temp Range | -20°C to +40°C | -30°C to +50°C | -50°C to +30°C |
| Vapor Pressure Control | Auto RVP Compensation (±0.05 psi) | Same | Advanced Reid Vapor Pressure Algorithm |
| Material Contact | Alloy 59 + Kalrez?6375 | Zirconium 702 + FFKM | 316L EP + PFA Lined |
| Static Dissipation | <10? Ω (NFPA 77) | <10? Ω (IEC 60079-32-1) | <103 Ω (MIL-STD-1686) |
| VOC Capture | >99.9% Carbon Adsorption | >99.99% Thermal Oxidizer | >99.97% Cryocondensation |
| Leakage Rate | <0.001 ml/min | <0.0005 ml/min | <0.0002 ml/min |
| Power | 480V/60Hz, 22kW | 24VDC Ex ia | 480V/60Hz, 18kW |
| N? Consumption | 80 L/min | 90 L/min | 70 L/min |
| Footprint (L×W×H) | 5200×3800×3500mm | 5500×4000×3700mm | 5300×3900×3600mm |
| Certifications | CE PED | ATEX Zone 0 | DNV GL Marine |
Triple Defense Architecture
Critical Metrics:
| Safety Parameter | Specification | Standard |
|---|---|---|
| Oxygen Concentration | <8% (Continuous Monitoring) | ATEX Cat 1G Zone 0 |
| Static Energy Limit | <0.1 mJ (NFPA 77) | IECEx IEC 60079-32-1 |
| Response Time | <0.3s (Full Shutdown) | SIL-3 (IEC 61511) |
| Technology | Function | Performance |
|---|---|---|
| Submerged Filling | Nozzle extends below liquid level | Reduces vapor generation by 98% |
| Double Bellows Seal | Metal + PTFE dual-containment | Permeation <0.01μg/cm2/min |
| Vacuum Assist | -0.7 bar during disconnection | Residual vapor <5ml |
Low-Temp Operation:
Maintains acetone at -40°C (BP 56°C @ 1 atm)
Prevents boiling during hot-climate filling
Components:
| Part | Cryogenic Specification |
|---|---|
| Valves | LNG-rated stem packing (-196°C) |
| Insulation | Vacuum-jacketed piping |
| Sensors | Cryo-calibrated RTDs (±0.1°C) |
Chemical Manufacturing
| Feature | Compliance |
|---|---|
| OSHA 1910.106 | Overfill protection SIL-2 |
| EPA Method 21 | <500 ppm leak detection |
| RCRA Waste Codes | Automatic waste logging |
Pharmaceutical Solvents
USP <467> Residual Solvent Compliance
316L Electropolished Surfaces (Ra<0.4μm)
Clean-in-Place (CIP) Validation:
| Test | Result |
|---|---|
| Acetone Residual | <1 ppm (GC-MS) |
| Bioburden | <1 CFU/100ml |
Electronics Grade Acetone
| Parameter | Control Standard |
|---|---|
| Particle Count | ISO Class 3 (≥0.5μm) |
| Metal Ions | <1 ppb Fe, Na, K, Cu |
| Water Content | <50 ppm (Karl Fischer) |
15" ATEX HMI with SolventOS?
AI Safety Modules:
Static Charge AI:
| Risk Level | Action |
|---|---|
| >5 kV | Auto humidification |
| >10 kV | Ionized air blast |
Leak Prediction:
| Anomaly | Resolution |
|---|---|
| Seal friction >8N | Auto-lubrication cycle |
| Temp spike >3°C | Flow reduction |
? ATEX 2014/34/EU Cat.1 Zone 0 (AG-10200X) ? IECEx IEC 60079-0/11/31 ? ASME B31.3 Process Piping ? FDA 21 CFR 175.300 ? DNV GL Marine (AG-10300C)
1. AGV IBC Positioning → 2. Laser Flange Alignment → 3. N? Purging (O?<0.5%) → 4. Triple-Seal Connection → 5. Submerged Mass Flow Filling (±0.1%) → 6. Vacuum Disengagement → 7. VOC Capture Activation → 8. Helium Leak Test (<10?? mbar·L/s)
Cycle Time: 3.3 min/IBC
BASF Antwerp Case Study:
*"After 12 months using AG-10200X:
Throughput: 12 → 16 IBCs/hour (+33%)
Acetone Loss: 1.8% → 0.05%
VOC Emissions: 850 ppm → <0.5 ppm
Safety Incidents: 3 → 0
ROI: 11 months"*
