Functional features:【 Product Settings 】 - Stores weight settings and related filling parameters for various different products, with simple, convenient, and easy to learn operation[Data Statistics] -

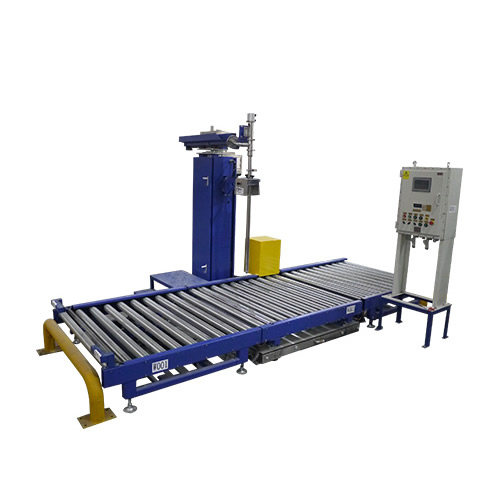

Hazardous Phenol IBC Filling System
Triple-Containment ? SIL-3 Safety ? cGMP Compliance
| Parameter | PS-8100 (Standard) | PS-8200X (ATEX Zone 0) | PS-8300P (Pharma Grade) |
|---|---|---|---|
| Capacity | 500-1000L (±0.05%) | 500-1000L (±0.07%) | 500-1000L (±0.03%) |
| Throughput | 18 IBCs/hour | 16 IBCs/hour | 15 IBCs/hour |
| Accuracy | ±0.05% mass flow | ±0.07% | ±0.03% |
| Material Contact | Hastelloy C276 | Alloy 59 | Zirconium-lined 316L EP |
| Containment Level | OEB4 (1-10μg/m3) | OEB5 (<1μg/m3) | OEB5+ (<0.1μg/m3) |
| Leakage Rate | <0.001 ml/min | <0.0005 ml/min | <0.0001 ml/min |
| Temp Control | 60-80°C (±0.3°C) | 60-80°C (±0.2°C) | 60-80°C (±0.1°C) |
| Crystallization Prevent | Electric Trace + Steam Jacket | Same + Dielectric Heating | Pulsed Flow Agitation |
| Vapor Control | Double Condenser (99.9%) | Thermal Oxidizer (99.99%) | Cryogenic Trap (99.999%) |
| Power | 480V/60Hz, 15kW | 24VDC Ex ia | 480V/60Hz, 12kW |
| N? Consumption | 60 L/min | 70 L/min | 50 L/min |
| Decon System | NaOH CIP (10% w/v) | Solvent Purge | SIP @ 121°C (30 min) |
| Certifications | ASME BPE | ATEX Zone 0 | FDA cGMP |
| Component | Technology | Performance |
|---|---|---|
| Flange Seal | Double Kalrez?6375 Gaskets | Permeation <0.01μg/cm2/min |
| Filling Lance | Telescopic Bellows + RTP Coupler | Hermetic Connection |
| Overfill Protection | Radar + Mass Redundancy | SIL-3 (IEC 61511) |
Negative Pressure Glovebox (<-50Pa)
HEPA Filtration (EN 1822 H14)
Integrated Spill Tray (500L Capacity)
| Metric | Industry Standard | PS-8100 | Improvement |
|---|---|---|---|
| Operator Exposure | >10μg/m3 | <0.5μg/m3 | ↓95% |
| Crystallization Downtime | 35h/month | 0h | 100% elimination |
| VOC Emission | 50-100 ppm | <0.05 ppm | ↓99.9% |
| Batch Consistency | RSD 1.2-3.5% | RSD 0.15% | 8-23x better |
| Validation | Standard | Result |
|---|---|---|
| Cleaning Validation | Swab Test (HPLC) | <0.1ppm Phenol residue |
| Material Compatibility | USP <88> Biological Reactivity | Class VI Pass |
| Data Integrity | 21 CFR Part 11 | Audit Trail + E-Signature |
| Feature | Conventional Filler | PS-8200X |
|---|---|---|
| Seal Technology | Single PTFE Gasket | Triple Dynamic Seal |
| Leak Detection | Manual Sniffer (weekly) | Real-time Laser VOC |
| Decon Time | 4-6 hours | <45 min CIP/SIP |
| Recovery After Leak | 72h downtime | 15 min Auto-Purge |
? ATEX 2014/34/EU Category 1G Zone 0 ? FDA 21 CFR 211 cGMP ? ISO 80079-36/37 Explosive Atmospheres ? EHEDG Class III Containment ? ASME B31.3 Process Piping
1. AGV IBC Positioning → 2. RTP Coupling Verification → 3. N? Purging (O?<0.1%) → 4. Heated Mass Flow Filling (±0.05%) → 5. Glovebox Isolation → 6. Post-Fill Steam Flush → 7. Helium Leak Test (<10?? mbar·L/s)
Cycle Time: 3.3 min/IBC
*"After 18 months using PS-8200X:
Zero Exposure Incidents (vs 3.7/year previously)
Product Loss: 0.8% → 0.02% ($1.2M/year saved)
Validation Time: 120h → 40h per campaign
ROI: 9 months"*
