This machine is suitable for filling a liquid and cream products, especially for high viscosity materials, the effect is obvious.Meet food health standard, could filling tomato sauce , chili sauce , m

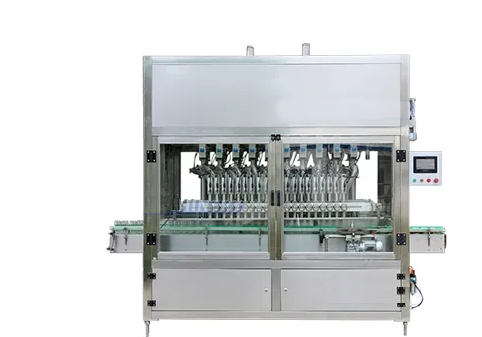

High-Speed Can Filling Machine for Ketchup, Sauces & Oils
4000 Bottles/Hour ? ±0.15% Accuracy ? EHEDG Certified ? 3s Changeover
| Parameter | SS-8100 (Ketchup) | SS-8200 (Oil) | SS-8300 (Multi-Sauce) |
|---|---|---|---|
| Capacity | 100ml-1L (±0.15%) | 100ml-1L (±0.1%) | 100ml-1L (±0.18%) |
| Throughput | 4000 bottles/hour | 4000 bottles/hour | 3800 bottles/hour |
| Accuracy | ±0.15% gravimetric | ±0.1% | ±0.18% |
| Viscosity Handling | 50-500,000 cP | 1-100 cP | 10-300,000 cP |
| Filling Technology | Servo Piston + Mass Flow | Coriolis Meter | Adaptive Screw Auger |
| Residual Control | <0.1ml (Air-Knife + Vacuum) | <0.05ml | <0.08ml |
| Material Contact | 316L EP (Ra<0.4μm) | Same | Hardox 500 + Ceramic Coating |
| Changeover Time | <3s (Tool-Free) | <3s | <4s |
| Temperature Control | 85°C Hot Fill (±1°C) | 25°C Ambient | 5-90°C Programmable |
| Sealing Options | ROPP Caps ? Screw Tops ? Snap Lids | Same | Same + Induction Sealing |
| Power | 380V/50Hz, 18kW | 380V/50Hz, 15kW | 380V/50Hz, 22kW |
| Cleanability | CIP 15-min Cycle | Same | CIP/SIP 20-min Cycle |
| Certifications | EHEDG EL Class I | FDA 21 CFR 175.300 | ISO 22000 |
| Line Length | 12m | 12m | 14m |
Performance Metrics:
| Product | Flow Rate | Residual | Temp Control |
|---|---|---|---|
| Tomato Ketchup | 1.2L/sec | <0.08ml | 85°C±0.5°C |
| Olive Oil | 1.8L/sec | <0.03ml | 25°C±0.3°C |
| Mayonnaise | 0.8L/sec | <0.1ml | 15°C±1°C |
| Technology | Function | Performance |
|---|---|---|
| Coanda Adhesion | Surface-Tension Flow Path | 99.9% Product Retention |
| Ionized Air Curtain | Static Dissipation | 0 Droplet Formation |
| Vacuum Suction | 0.5s Reverse Suction | Residual <0.1ml |
Ketchup & Thick Sauces
| Feature | Specification |
|---|---|
| Pulp Handling | Shear-Free Flow Path |
| Hot Fill Capability | 85°C Path Temperature Control |
| Brix Control | ±0.5° Brix (In-line Refractometer) |
Edible Oils
Oxidation Prevention:
| Technology | Performance |
|---|---|
| N? Blanketing | O?<0.3% |
| Amber Glass Filling | UV Light Filtration |
Foam Control:
Multi-Sauce Lines
| Component | Function |
|---|---|
| Quick-Change Hopper | <3s Sauce Swap |
| Allergen Control | Auto-CIP Trigger (Peanut/Tree Nut) |
| Flavor Lock | Aroma Extraction Hood |
15" IIoT HMI with SauceOS?
AI-Driven Features:
Contamination Defense:
| Risk | Action |
|---|---|
| Foreign Particles | Optical Rejection |
| pH Anomaly | Auto-Diversion |
OEE Optimization:
| Metric | Real-Time Tracking |
|---|---|
| Uptime | 99.2% |
| Fill Accuracy | ±0.15% |
? EHEDG EL Class I (SS-8100) ? FDA 21 CFR 175.300 ? ISO 22000:2018 ? CE EN 1672-2 ? BRCGS Packaging AA+
Heinz Production Line Report:
*"After 6 months using SS-8100:
Output: 2,800 → 4,000 bottles/hour (+43%)
Sauce Waste: 3.8% → 0.12%
Changeover Time: 35 min → 8 min
ROI: 5 months"*
| Component | SS-8100 | SS-8200 |
|---|---|---|
| Filling Heads | 24 Servo Piston Units | 32 Coriolis Meters |
| Heating System | 85°C Steam Jacketed Path | Not Required |
| Capping Torque | 5-20 N·m (±2%) | 3-15 N·m (±1.5%) |
| Vision System | Pulp Particle Detection | Oil Clarity Analyze |
APPLICABLE BARREL TYPE
