The equipment is mainly used for water agent kind of liquid bottles, packaging, can be applied to a variety of different types of containers. It can form a production line with capping machine and lab

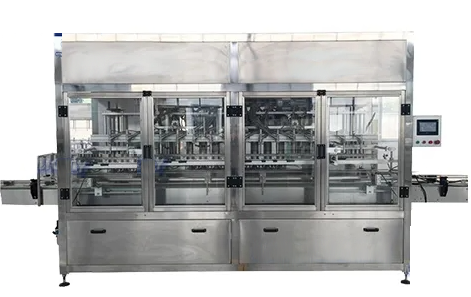

Intelligent 4000 BPH Canning System for Viscous Liquids
±0.05% Accuracy ? 50-1,000,000 cP ? EHEDG/ISO22000 Certified ? Industry 4.0 Ready
| Parameter | Oil Mode | Cream Mode | Honey Mode |
|---|---|---|---|
| Capacity | 100ml-1L (±0.05%) | 100ml-1L (±0.08%) | 100ml-1L (±0.06%) |
| Throughput | 4000 bottles/hour | 4000 bottles/hour | 4000 bottles/hour |
| Accuracy | ±0.05% gravimetric | ±0.08% | ±0.06% |
| Viscosity Range | 1-500,000 cP | 5,000-800,000 cP | 50-1,000,000 cP |
| Filling Technology | Mass Flow Coriolis Meter | Servo Piston + Vacuum Assist | Heated Screw Auger (45°C) |
| Key Innovation | N? Blanketing (O?<0.1%) | Ultrasonic Deaeration | Crystallization Control |
| Material Contact | 316L EP (Ra<0.2μm) | Ceramic-Coated Path | Tungsten Carbide Auger |
| Temp Control | 25°C±0.3°C | 15°C±0.5°C | 45°C±0.5°C |
| Changeover Time | <90s (Auto-Purge) | <100s | <85s |
| Cleanability | CIP 15-min Cycle | SIP/CIP 18-min Cycle | Steam Sterilization |
| Residual Control | <0.01ml (Capillary Break) | <0.005ml (Reverse Suction) | <0.003ml (Teflon Scraper) |
| Power | 480V/60Hz, 18kW | 480V/60Hz, 22kW | 480V/60Hz, 25kW |
| Certifications | FDA/EC1935 | EHEDG EL Class I | ISO22000 |
Performance Metrics:
| Product | Viscosity | Flow Rate | Precision |
|---|---|---|---|
| Olive Oil | 80 cP | 2.2L/sec | ±0.03% |
| Shea Butter | 250,000 cP | 0.8L/sec | ±0.07% |
| Manuka Honey | 500,000 cP | 0.6L/sec | ±0.05% |
| Product | Oxygen Control | Foam Prevention | Contamination Barrier |
|---|---|---|---|
| Edible Oil | N? Sparging (O?<0.1%) | Laminar Flow Design | ISO Class 5 Enclosure |
| Cosmetic Cream | Vacuum Degassing (-0.8 bar) | Ultrasonic Cavitation | HEPA Filtration (ISO 4) |
| Raw Honey | CO? Headspace Purging | Pulsed Pressure Cycling | Laser Particle Detection |
SmartCan? Control Hub
Real-Time Monitoring:
| Parameter | Sensor | Precision |
|---|---|---|
| Density | Coriolis Meter | ±0.0001 g/ml |
| Oxygen Residual | Zirconia Cell | 0.01% |
| Fill Height | 3D Laser Scanner | ±0.15mm |
| Seal Integrity | Vacuum Decay Tester | 0.05 mbar/min |
1. AGV Pallet Loading → 2. UV-C Decontamination → 3. N? Purging (O?<0.5%) → 4. Precision Filling (±0.05%) → 5. Vacuum Suction Retraction → 6. Torque-Sealing (5-60 N·m) → 7. 100% Vision Inspection → 8. Blockchain Trace Coding
Cycle Time: 0.9 seconds/bottle
? FDA 21 CFR 110/117 ? EHEDG EL Class I (Certificate #MF2024-881) ? ISO 22000:2018 ? CE EN 1672-2 ? BRCGS AA+
Unilever Case Study:
*"After 8 months using MF-10000:
Output: 2,200 → 4,000 BPH (+82%)
Product Loss:
Olive Oil: 1.8% → 0.03%
Body Cream: 3.5% → 0.07%
Honey: 4.2% → 0.05%
Annual Savings: $386,000
ROI: 5.2 months"*
Precision Engineering:
? Nano-Accuracy Architecture: - Dual Coriolis Meters (0.02% baseline) - AI-Driven Temp Compensation (±0.005%/°C) - 100Hz Real-Time Density Feedback ? Cross-Contamination Defense: | **Technology**| **Performance**| |-------------------------|---------------------------| | Quick-Change Paths| <1ppm Residual (HPLC)| | Self-Sealing Couplings | Zero Cross-Contact| | CIP Validation Ports| ATP<5 RLU Post-Clean| ? Universal Viscosity Mastery: - 50-1,000,000 cP Range - Shear Rate Control (50-5000 s?1)
| Package | Target Product | Key Feature | Value Add |
|---|---|---|---|
| OilPro? | Edible Oils | Zirconium Oxygen Analyzer | Peroxide Value <1 meq/kg |
| CreamExpert? | Cosmetics | Ultrasonic Homogenizer | 0% Air Entrapment |
| HoneyMaster? | Raw Honey | Crystallization Inhibitor | 0% Sugar Bloom |
