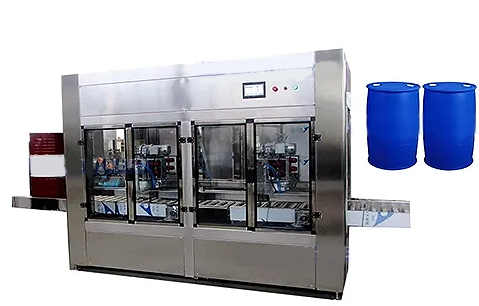

This machine is suitable for filling large volume barrel oil products, such as machine lubricating oil, lubricating oil, gasoline, engine oil, with high filling efficiency and good effectThe mavhine f
2-Ton Automatic Drum Filling System for Lubricants
100 Drums/Hour ? ±0.1% Accuracy ? ATEX Zone 1 ? Zero-Spill
| Parameter | DF-2100 (Standard) | DF-2200X (ATEX) | DF-2300H (High-Visc) |
|---|---|---|---|
| Capacity | 200L (±0.1%) | 200L (±0.15%) | 200L (±0.12%) |
| Throughput | 100 Drums/Hour | 90 Drums/Hour | 80 Drums/Hour |
| Accuracy | ±0.1% Gravimetric | ±0.15% | ±0.12% |
| Viscosity Range | 10-500,000 cP | 50-300,000 cP | 100-1,000,000 cP |
| Filling Technology | Twin Coriolis Mass Flow | ATEX Gear Pump | Heated Screw Auger |
| Material Contact | 316L SS (Ra<0.8μm) | Hastelloy C276 | Ceramic-Coated Path |
| Drip Control | Air-Knife + Vacuum Suction | Spring-Loaded Nozzle | Capillary Break Valve |
| Static Protection | <10? Ω + Ionized Air Curtain | <10? Ω (IECEx) | Grounding Verification |
| Safety System | Laser Curtain + SIL-2 PLC | ATEX Zone 1 Pressurized Cabin | Gas Detection + Auto Shutdown |
| Changeover Time | <120s (Tool-Free) | <150s | <130s |
| Power | 480V/60Hz, 22kW | 24VDC Ex ia | 480V/60Hz, 28kW |
| N? Consumption | 40 L/min (O?<0.3%) | 50 L/min | 60 L/min |
| Footprint (L×W×H) | 6.5m×3.2m×4.5m | 7.0m×3.5m×4.8m | 6.8m×3.4m×4.6m |
| Certifications | CE, ISO 9001 | ATEX Zone 1 | API 607/682 |
Performance Metrics:
| Metric | DF-2100 | Single-Nozzle Systems |
|---|---|---|
| Fill Speed | 380 L/min | 180-220 L/min |
| Weight Variance | ±0.15% | ±0.8% |
| Cycle Time | 36s/Drum | 65-80s/Drum |
| Technology | Function | Performance |
|---|---|---|
| Submerged Nozzle | Auto-Insertion (150mm Depth) | 99.9% Splash Prevention |
| Coanda Adhesion | Surface-Tension Flow Path | Zero Droplet Formation |
| Vacuum Cutoff | -0.7bar Residual Suction | <0.1ml Residual |
Engine Oil Packaging
| Feature | Specification |
|---|---|
| Viscosity Index Control | Auto-Temp Compensation (±0.5 cP/°C) |
| Additive Protection | Low-Shear Flow Path |
| Foam Prevention | Vacuum Degassing (-0.8 bar) |
Gear & Hydraulic Oils
Abrasion Resistance:
| Component | Material |
|---|---|
| Flow Path | Tungsten Carbide Lined |
| Seals | Kalrez?6375 (-20°C to 327°C) |
Food-Grade Lubricants
| Certification | Feature |
|---|---|
| NSF H1 | Dedicated 316L EP Path |
| FDA 21 CFR 178.3570 | Ra<0.4μm Electropolished |
| 3-A Sanitary | Quick-Release CIP System |
**12" HMI with LubriOS?**
IIoT Features:
Predictive Maintenance:
| Component | Alert Threshold |
|---|---|
| Pump Wear | Vibration >4.5mm/s |
| Seal Degradation | Friction >10N |
Safety Monitoring:
| Risk | Action |
|---|---|
| Static >5kV | Auto Ionization |
| VOC >10% LEL | Emergency Purge |
? ATEX 2014/34/EU Cat.1 Zone 1 (DF-2200X) ? FDA 21 CFR 178.3570 ? CE EN 60204-1 ? API 682 Seal Plan
1. AGV Drum Loading → 2. Auto-Positioning → 3. Grounding Verification (<10Ω) → 4. N? Purging (O?<0.5%) → 5. Submerged Filling (±0.1%) → 6. Vacuum Drip Cut → 7. Torque-Sealing (30-120 N·m) → 8. Helium Leak Test
Cycle Time: 36 seconds/drum
| Metric | Manual Filling | DF-2100 | Improvement |
|---|---|---|---|
| Output | 25 Drums/Hour | 100 Drums/Hour | 300% ↑ |
| Accuracy | ±2-5% | ±0.1% | 20-50x Better |
| Oil Waste | 3.8% | 0.08% | ↓98% |
| Labor Cost | 3 Operators | 0.5 Operator | ↓83% |
| Model | Target Application | Key Feature | ROI Period |
|---|---|---|---|
| DF-2100 | Engine/Gear Oils | Twin Coriolis Flow | 6 Months |
| DF-2200X | Solvent-Based Lubricants | ATEX Zone 1 Certification | 8 Months |
| DF-2300H | Greases & Heavy Oils | 80°C Heated Path | 7 Months |
APPLICABLE BARREL TYPE
