Main structure description：

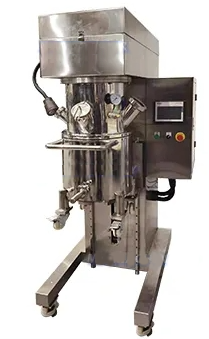

The double planetary mixer is divided into a geared motor, a cover, a planet carrier, a mixer, a wall scraper, a bucket, a single-column hydraulic lifting system, a vacuum system, and a frame. It is a new and high-efficiency mixing device developed by innovation and improvement on the basis of digesting and absorbing advanced technologies at home and abroad.

Working principle ：

When the planet carrier rotates, it drives the three stirring and dispersing shafts in the box to revolve around the axis of the barrel while rotating at high speed, so that the material is subjected to strong shearing and kneading to achieve the purpose of full dispersion and mixing; there is a scraper on the planet carrier The wall knife rotates with the planet carrier, and it is continuously scraped against the wall of the barrel to make the wall of the barrel free of retained materials and improve the mixing effect. The length of the mixing time is controlled by the user according to the properties of the material and can be adjusted through the control panel. The cover and planetary mixer are hydraulically lifted and lowered by a single column, and the operation is flat and hidden, fast and light.

This device can work under vacuum and can continuously discharge water and other volatiles. Therefore, it can be used as a degassing kettle. The barrel can be heated or cooled by oil and water circulation as required; steam heating can also be used. The heating temperature is displayed by the temperature controller on the control panel.

Because this device has good mixing, shearing and dispersing effects, it is especially suitable for solid-solid, solid-liquid, and liquid-liquid dispersion and mixing, so it is used in chemical, food, light industry, pharmaceutical, building materials and other industries Both can be widely used.
