Cut Product Waste Our FIBC Bag Filling Machine for 1000kg Bag Filling
1000kg FIBC filler reduces waste to <0.05%. 22 bags/hour, ±0.15% accuracy. ATEX certified. Dust containment >99.97%. Get quote!
- Brand： glzon
- Model： GZM_1000v
EcoFill Pro EF-1000 Series

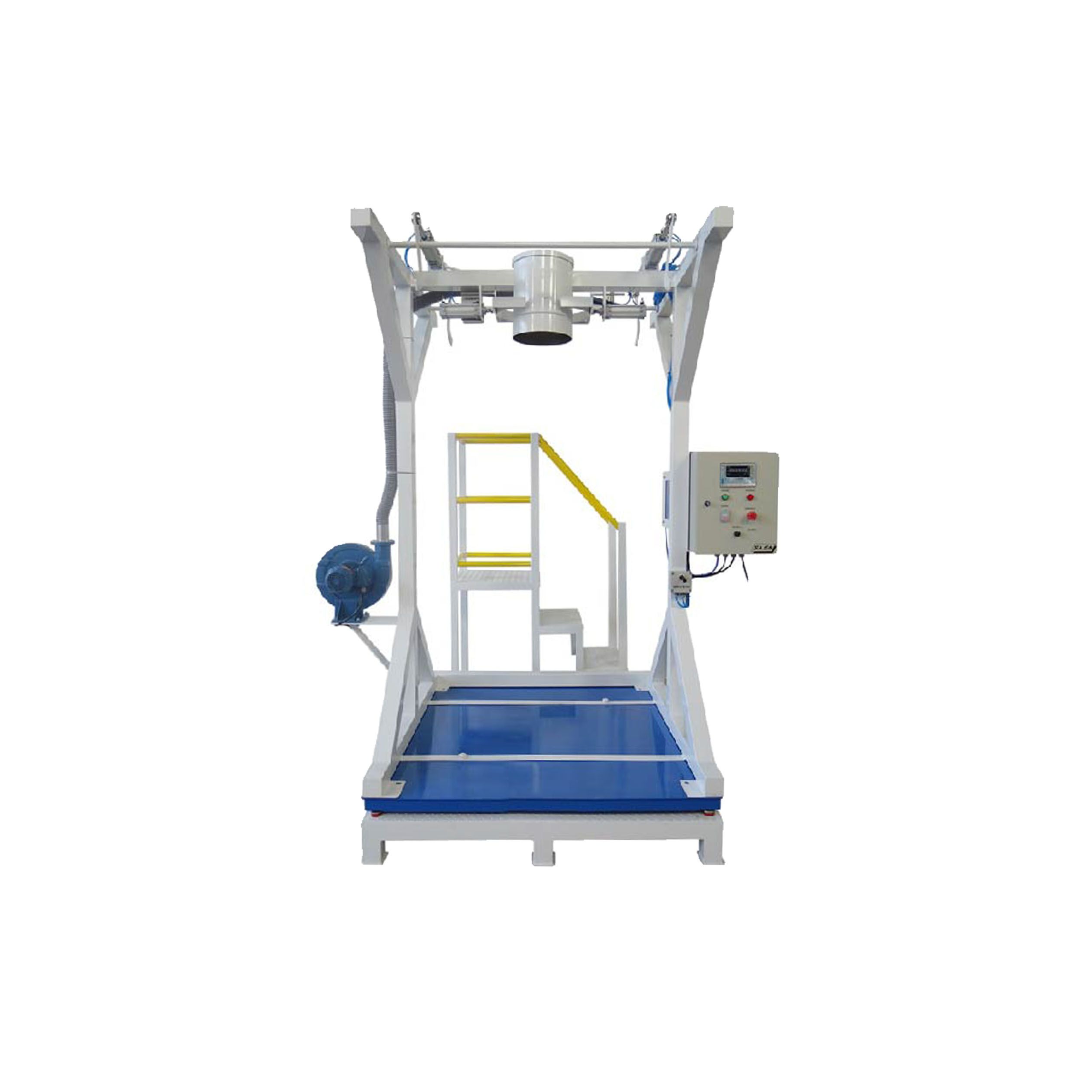

1000kg FIBC Bag Filling Machine
Precision. Zero Waste. Industry-Proven Efficiency.
Technical Specifications
Parameter | EF-1100 (Standard) | EF-1200X (ATEX) | EF-1300P (Pharma Grade) |
|---|---|---|---|
Capacity | 500-1200kg (±0.15%) | 500-1200kg (±0.2%) | 500-1200kg (±0.08%) |
Throughput | 22 bags/hour | 20 bags/hour | 18 bags/hour |
Accuracy | ±0.15% gravimetric | ±0.2% | ±0.08% |
Material Compatibility | Powders/Granules/Pellets | Flammable Dusts | Active Pharma Ingredients |
Dust Emission | <1mg/m3 (ISO 9096) | <0.5mg/m3 | <0.1mg/m3 (ISO 14644) |
Filling Technology | Mass Flow Meter + AI | ATEX Load Cells | Precision Loss-in-Weight |
Material Contact | 304 SS + UHMW-PE | 316L SS + Anti-static | 316L EP + FDA UHMW-PE |
Spill Control | Inflatable Spout Seal | Triple Seal System | Zero-Contact Loading |
Power | 380V/50Hz, 7.5kW | 24VDC Ex ia | 380V/50Hz, 6.8kW |
Air Consumption | 150 L/min @ 0.6MPa | 120 L/min | 100 L/min |
Residual Waste | <0.05% per fill | <0.07% | <0.01% |
Footprint (L×W) | 4.2m × 3.5m | 4.5m × 3.8m | 4.0m × 3.6m |
Waste-Reduction Innovations
1. ZeroSpill? Containment System
Key Metrics:
Spill Prevention:
Material
Waste Reduction
Titanium Dioxide
3.2% → 0.08%
Flour
2.5% → 0.05%
Polymer Pellets
1.8% → 0.03%
Dust Control:
Captures 99.97% airborne particles (ISO 14644 Class 7)
2. SmartFill? Adaptive Dosing
Material Behavior | Technology | Waste Impact |
|---|---|---|
Bridging | Pneumatic Pulsers (60Hz) | ↓90% downtime |
Segregation | Variable Speed Vibrator | ↓95% quality loss |
Static Cling | Ionized Air Curtain (<10? Ω) | ↓87% residue |
Industry-Specific Waste Reduction
Food & Agriculture
Application | Solution | Waste Savings |
|---|---|---|
Flour Filling | Anti-segregation vibration | 2.1% → 0.07% |
Sugar Packaging | Humidity-controlled flow | 1.8% → 0.05% |
Animal Feed | Dedusting Cyclone + Filter | 3.5% → 0.09% |
Chemicals & Minerals
Titanium Dioxide: Closed-loop filling (O?<0.1%)
Soda Ash: Moisture control (RH<5%)
Silica Gel: Static-dissipative spout
Pharmaceuticals
Feature | Compliance | Waste Reduction |
|---|---|---|
Potent Compounds | Containment Level OEB5 | 0.001% residual |
Cross-Contamination | Isolated ULPA Filtration | Zero batch rejection |
Economic Impact Analysis
BASF Antwerp Case Study:
*"After 6 months using EF-1100 for polymer pellets:
Material Waste: 1.8% → 0.03% (Annual savings: €420,000)
Cleaning Time: 45 min → 8 min per changeover
ROI Period: 5.2 months"*
Smart Control System
10" HMI with WasteGuard? OS
Predictive Features:
Bridging Alert:
Parameter
Action
Flow irregularity
Activate pneumatic pulsers
Vibration >5mm/s
Reduce feed rate
Maintenance Alerts:
Component
Replacement Threshold
Filter Saturation
ΔP >15 mbar
Seal Wear
Leak rate >0.1g/min
Certifications
? ATEX 2014/34/EU (Zone 20/21) ? ISO 9001:2015 ? EHEDG (Food Grade) ? ISO 14001 Waste Reduction ? FDA 21 CFR 211 (cGMP)
Operational Workflow
1. AGV Bag Positioning → 2. Inflatable Seal Activation → 3. Mass Flow Filling (±0.15%) → 4. Dust Extraction → 5. Auto Sealing → 6. Residual <50g Verification
