MethylSafe MS-5000 Series200L Semi-Automatic Methyl Acetate Drum Filling SystemATEX Zone 1 Certified • Zero Vapor Emission • ±0.15% AccuracyMission-Critical Safety EngineeringTriple-Barrier Solvent Pr

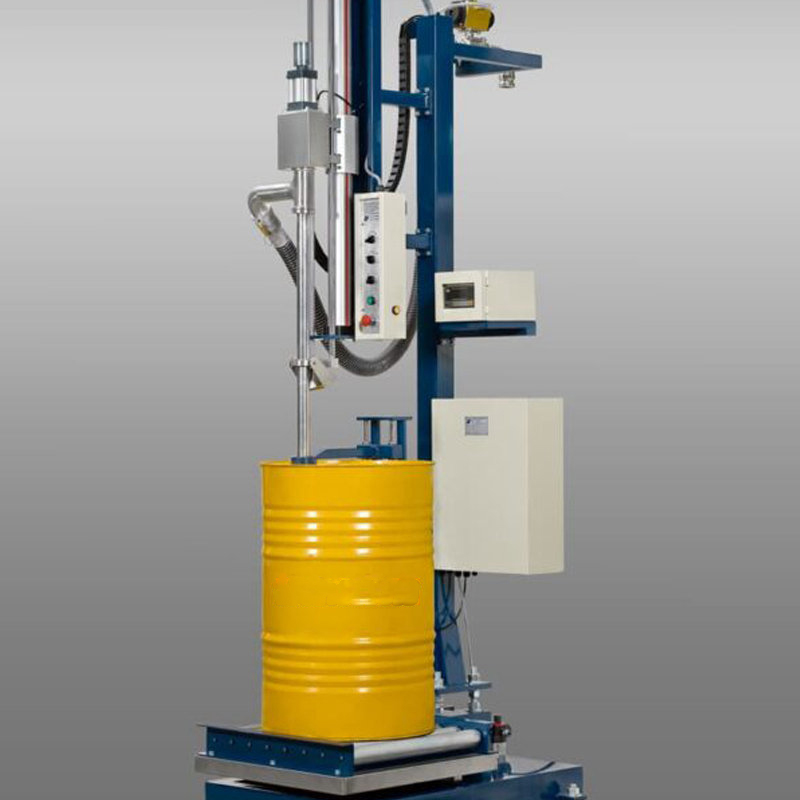

200L Semi-Automatic Methyl Acetate Drum Filling System
ATEX Zone 1 Certified ? Zero Vapor Emission ? ±0.15% Accuracy
| Defense Layer | Technology | Certification |
|---|---|---|
| Vapor Containment | Double Mechanical Seal + Vapor Recovery Hood | ATEX 2014/34/EU Cat.1 Zone 1 |
| Ignition Prevention | Pressurized Cabinets (+50Pa) | IECEx IEC 60079-2 |
| Static Control | Conductive Paths (<10? Ω) + Ionized Air Curtain | NFPA 77 Compliance |
| Leak Detection | IR Hydrocarbon Sensors (5% LEL Auto-Stop) | SIL-2 (IEC 61511) |
Material Compatibility:
Wetted Parts: Hastelloy C276 (Corrosion Rate: <0.002 mm/yr)
Seals: Kalrez? 6375 (-20°C to 327°C)
Gaskets: PTFE-Encapsulated Graphite
| Parameter | MS-5100 (Standard) | MS-5200X (Enhanced) |
|---|---|---|
| Capacity | 180-220L (±0.15%) | 180-220L (±0.12%) |
| Throughput | 18 drums/hour | 16 drums/hour |
| Accuracy | ±0.15% gravimetric | ±0.12% |
| Vapor Recovery | >99.5% Carbon Adsorption | >99.8% Thermal Oxidizer |
| Filling Speed | 150 L/min | 120 L/min |
| Residual Vapor | <50 ppm (EPA Method 21) | <5 ppm |
| N? Inerting | 50 L/min (O?<0.3%) | 60 L/min (O?<0.1%) |
| Material Contact | Hastelloy C276 | Zirconium 702 |
| Static Dissipation | <10? Ω Surface Resistivity | <10? Ω |
| Response Time | 0.5s Emergency Shutdown | 0.3s |
| Power | 24VDC Ex ia (3.5kW) | 24VDC Ex ia (4.2kW) |
| Footprint (L×W×H) | 2200×1800×2500mm | 2400×2000×2700mm |
| Certifications | ATEX Zone 1 | SIL-3 + ATEX Zone 0 |
Performance Data:
| Parameter | Value | Industry Standard |
|---|---|---|
| Vapor Emission | <5 ppm | 200-500 ppm |
| Filling Loss | 0.08% | 1.2-3.5% |
| O? Concentration | 0.05% | 0.5-2% |
3-Stage Inerting:
Drum Vacuum (-0.8 bar)
N? Flood (3x Volume Exchange)
Continuous Blanketing (O?<0.3%)
Cycle Time: 45 seconds (vs 180s conventional)
1. Grounding Verification (<10Ω) → 2. Drum Positioning → 3. Seal Engagement (Double O-Ring) → 4. N? Purging (O?<0.3%) → 5. Submerged Filling (±0.15%) → 6. Vapor Recovery Activation → 7. Vacuum Nozzle Retraction → 8. Lid Sealing
Cycle Time: 3.2 min/drum
APPLICABLE BARREL TYPE
