Butyl Acetate IBC Weighing Filling Machine for 1000L

ATEX-certified IBC filler for 1000L butyl acetate. ±0.1% gravimetric accuracy, nitrogen inerting & VOC recovery. 15 fills/hour. CE/ISO 80079 compliant.

  • Brand: glzon
  • Model: GZM_1000L

Product Essence: Zero-Ignition Precision for Flammable Solvents

Shanghai Guangzhi Automation’s Butyl Acetate IBC Filler delivers ±0.1% gravimetric accuracy for 1000L IBC totes of flammable solvents. Engineered with ATEX Zone 1 certification, nitrogen inerting (O?<0.5%), and closed-loop VOC recovery (≥99.5%), it achieves 15 fills/hour while eliminating explosion risks and ensuring OSHA 1910.106/EPA 40 CFR compliance.

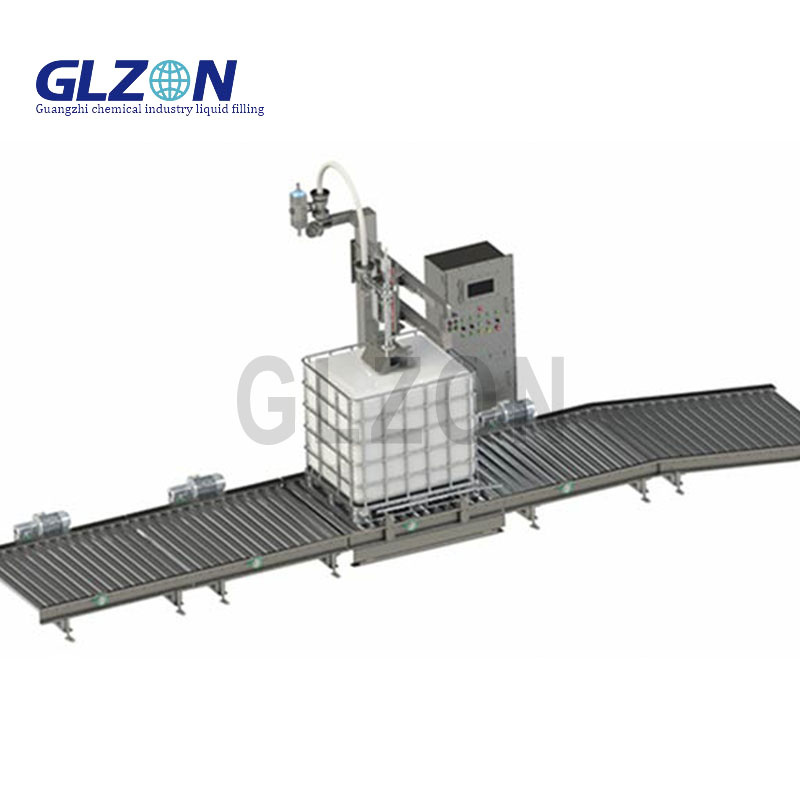

Butyl Acetate Filling Machine


Core Safety & Precision Technology

1. Explosion-Proof Weighing System

ComponentATEX Specification
Load CellsEx ia IIC T4 intrinsically safe
Filling HeadEx d pressurized enclosure
Control CabinetEx p purged (IP66)
Static ControlConductive hoses (<10? Ω) + auto-grounding

2. Precision Solvent Handling

  • Coriolis Mass Flow Meters:

    • ±0.1% accuracy (OIML R60 Class 0.5)

    • Auto-density compensation (0.87-0.88 g/cm3)

  • Low-Flow Final Phase:

    • 50 L/min → 5 L/min transition to prevent static buildup

3. Zero-Emission Design

  • Dual-Stage VOC Control:

    • Primary: Nitrogen blanket during filling

    • Secondary: Carbon adsorption (≥99.5% capture)

  • Spill Containment:

    • Secondary drip tray (200L capacity)

    • Laser-guided flange alignment (±0.5mm)


Technical Specifications

ParameterStandard ModelATEX Model
Filling Range500-1000L (±0.1%)500-1000L (±0.15%)
Flow Rate100-300 L/min80-250 L/min
Viscosity0.70 cP @ 20°CSame
Material Contact316L SS + PTFE316L SS + PTFE
VOC Recovery≥99.5% (EPA Method 21)≥99.7%
Power380V/50Hz, 4.5kW24VDC intrinsic safety
N? Consumption20 L/min @ 4bar15 L/min @ 4bar
Throughput15 fills/hour12 fills/hour
Footprint (L×W×H)3500×2200×3000mm3700×2200×3000mm

Butyl Acetate-Specific Engineering

ChallengeGuangzhi Solution
Low Flash Point (22°C)Explosion-proof sensors + nitrogen inerting
Static AccumulationConductive filters (<10? Ω)
Rubber DegradationPTFE/Kalrez seals
VOC EmissionsCarbon adsorption with auto-regeneration

Smart Control System

10" ATEX HMI (Ex de IIC T6)

  • Real-time dashboards:

    • VOC recovery efficiency

    • O? concentration (ppm)

    • Fill curve analytics

  • Predictive alerts:

    • Carbon saturation monitoring

    • Seal integrity degradation

Safety Interlocks (SIL3)

  1. Auto-shutdown if:

    • O? >1% in vapor space

    • Grounding fault detected

    • VOC >10% LEL

  2. Emergency nitrogen purge


Operational Impact

US Chemical Distributor Case:

  • Reduced solvent loss from 0.8% to 0.05%

  • Eliminated VOC compliance fines

  • ROI in 14 months via reduced N? consumption


Global Compliance & Upgrades

Certifications:

  • ATEX 2014/34/EU (Zone 1)

  • IECEx IEC 60079-0

  • OIML R60 Class 0.5

  • EPA 40 CFR Part 63 Subpart G

Critical Upgrades:

ModuleFunction
Robotic Lid HandlerAuto-sealing with torque control
In-line Flash Point TesterReal-time safety margin monitoring
Blockchain Batch LogImmutable compliance records
AR Safety TrainingHoloLens emergency drill simulator

Support & Service

24/7 Hazardous Response Team:

  • Remote diagnostics via intrinsically safe IIoT

  • Critical Spares Dispatch ≤48h:

    • Ex-proof Coriolis meters

    • VOC carbon cartridges

    • Kalrez sealing kits

  • Lifetime explosion safety audits


APPLICABLE BARREL TYPE
