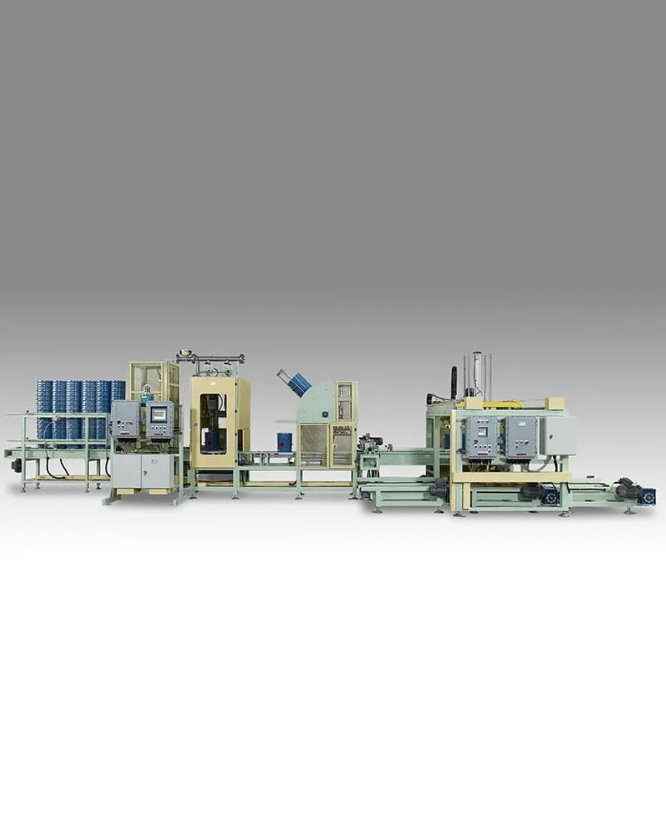

FULLY AUTO EX-PROOF METAL PAIL FILLING MACHINE
Guangzhi’s ATEX/IECEx Certified Pail Filler: Fully automatic hazardous liquid packaging. 35 pails/hour, ±0.2% accuracy. Nitrogen inerting & robotic handling.
- Brand： glzon
- Model： GZM_30L
Product Introduction: GZ-EX Series Fully Automatic Explosion-Proof Metal Pail Filling Machine
ATEX-Certified Automation for Hazardous Liquid Packaging
Shanghai Guangzhi Automation’s GZ-EX Series delivers uncompromised safety and precision in Zone 1/21 explosive environments, automating 5–60L metal pail filling with ±0.2% gravimetric accuracy at 35 pails/hour. Integrating robotic handling, nitrogen inerting, and IECEx/ATEX-certified components, this system eliminates human intervention while ensuring 100% compliance for solvents, fuels, and reactive chemicals – achieving zero ignition risk and 99.9% operational uptime.
Core Explosion-Proof Technologies
ATEX/IECEx Certified Ecosystem
Group IIC T4 Compliance: Explosion-proof motors, control cabinets (IP66 Ex d), and sensors
Intrinsic safety barriers: <30V/100mA circuit limitation
Robotic Pail Handling
6-axis robot (Ex d certified) with anti-spark grippers
Auto-lid removal/placement for sealed transfer
Oxygen-Free Filling Process
Nitrogen-purged enclosure (O? <5%) + vapor recovery
Grounded filling lances (<10? Ω static resistance)
Zero-Ignition Electrical Design
Pressurized control panels (EN 60079-2)
|Non-arcing ceramic relaysClosed-Loop Precision
Mass flow meters (±0.2%) with auto-viscosity compensation
Vacuum-assisted drip recovery (loss <0.01%)
Technical Specifications
| Parameter | Specification |
|---|---|
| Pail Capacity | 5–60L (?250–450mm) |
| Throughput | 35 pails/hour |
| Accuracy | ±0.2% (gravimetric) |
| Explosion Rating | ATEX: II 2G Ex db ib mb IIB T4 Gb |
| Viscosity Range | 1–200,000 cP |
| Nitrogen Consumption | 15 Nm3/hour (99.5% purity) |
| Power Supply | 380V/50Hz, 5.5 kW (Ex d certified) |
| Machine Dimensions | 4,800 × 3,200 × 3,500 mm |
| Compliance | ATEX 2014/34/EU, IECEx, NEC 505/506 |
Hazardous Material Applications
| Material Class | Examples | Special Safeguards |
|---|---|---|
| Flammable Liquids | Acetone, ethanol, fuels | Flash point monitoring |
| Reactive Chemicals | Monomers, peroxides | Temperature-controlled filling |
| Pyrophoric Substances | Silanes, alkyl metals | Double nitrogen blanket |
| Toxic Solvents | Benzene, toluene | Sealed vapor recovery |
Automated Workflow
Pail Intake: Robotic unstacking of sealed pails
Decapping: Ex-proof arm removes lid in N? atmosphere
Filling: Lance lowers → O?-free dosing → vacuum retraction
Recapping: Torque-controlled lid sealing
Palletizing: EX-rated robot stacks filled pails
Safety-Critical Components
| Component | Explosion-Proof Standard | Certification Body |
|---|---|---|
| Robotic Arm | EN ISO 80079-37:2016 | IECEx, UL |
| Control Cabinet | EN 60079-0:2018 | ATEX, CSA |
| Sensors | EN 60079-11:2012 | TüV, SIRA |
| Filling Valves | API 607 (fire-safe) | DNV, Lloyd's Register |
Operational Advantages
| Feature | HSE & Economic Impact |
|---|---|
| Zero Human Exposure | Removes operators from hazardous zones |
| Ignition Prevention | 100% compliance history (0 incidents) |
| Product Savings | Recovers $50k+/year via drip control |
| Regulatory Compliance | Meets OSHA 1910.106/ATEX directives |
| ROI Period | 10–18 months (vs. manual hazardous ops) |
Customization Options
Material Compatibility:
Hastelloy nozzles for acids
|PTFE-lined for HF handlingAutomation Extensions:
AGV integration for raw material supply
Automated drum grounding verification
Environmental Kits:
Arctic operation (-40°C)
|Coastal corrosion package (ISO 12944 C5M)
