Integrated Solution: Effortless Flow-to-Pallet Intelligence

Shanghai Guangzhi Automation synergizes Gravity Roller Accumulation Conveyor and Hip Palletizing Station to revolutionize manual palletizing – delivering 25 cycles/hour throughput with zero operational energy. Designed for boxes/cartons (5-25kg), this system reduces operator fatigue by 70% while enabling seamless transition from automated lines to manual stacking in warehouses, distribution centers, and mixed-mode factories.

Core System Components

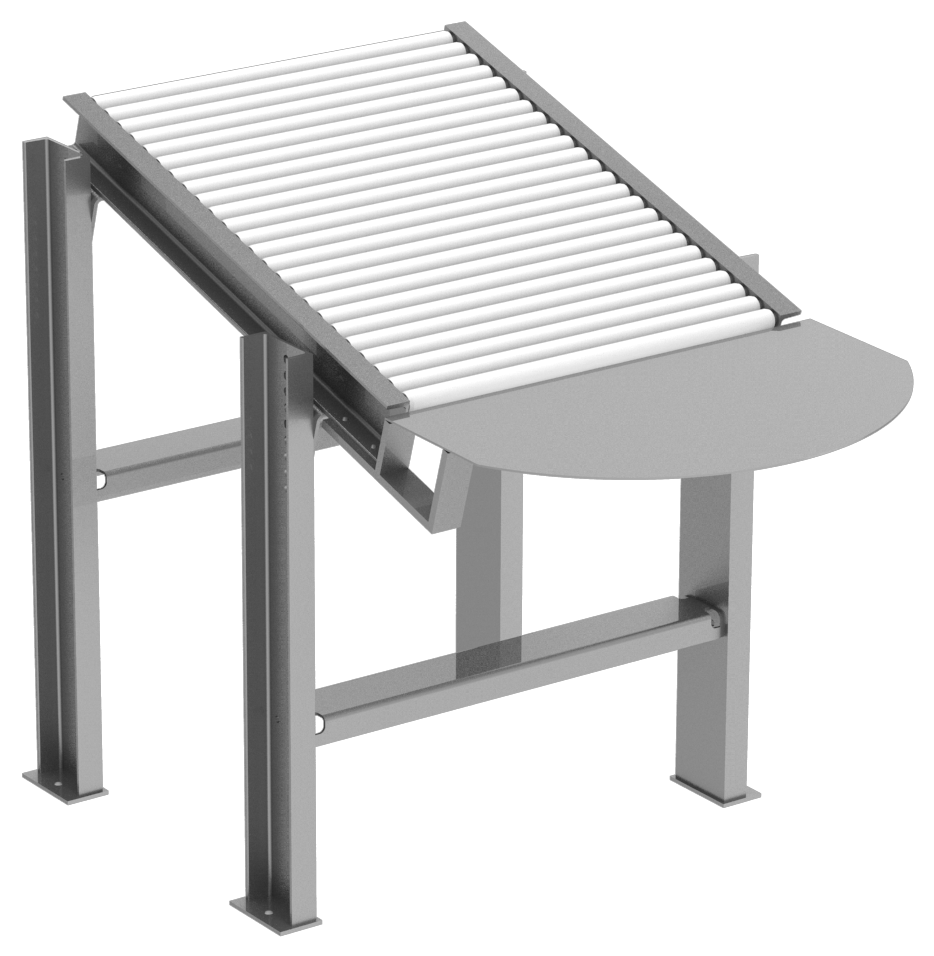

1. Gravity Roller Accumulation Conveyor

• Zero-Power Accumulation:

• 3° decline slope for controlled flow (0.3-0.8 m/s)

• Non-powered rollers with ABEC-5 bearings (push force ≤20N)

• Modular Buffering:

• 15 carton capacity (600×400×300mm boxes)

• Quick-release flow gates for lane control

• Industrial Durability:

• Galvanized steel frame (150kg/m load)

• PU-coated rollers (65 Shore A) for noise reduction (<55 dB)

2. Hip Palletizing Station

• Ergonomic Revolution:

• 90° hip rotation with gas-spring assist (reduces lumbar stress 90%)

• Height-adjustable work platform (650-950mm)

• Pallet Intelligence:

• Laser-guided layer alignment (±2mm accuracy)

• RFID pallet recognition (ISO 15693 compliant)

• Safety Ecosystem:

• Anti-slip diamond plate flooring

• Emergency descent mechanism

Technical Specifications

Ergonomics & Productivity Science

Biomechanical Optimization

• Hip Rotation Mechanics:

• Reduces torso twisting by 85% (NIOSH Lifting Equation compliance)

• Center-of-gravity alignment minimizes shoulder strain

• Vertical Lift Assist:

• Counterbalance mechanism supports 25kg at 950mm height

Lean Manufacturing Integration

• Just-in-Time Flow: Gravity conveyor acts as FIFO buffer

• Visual Management: Color-coded zone lighting for:

• Green: Ready for palletizing

• Amber: Buffer at 80% capacity

• Red: Full stop

Industry Applications

E-Commerce Fulfillment

• Seamless transition from automated sorter to manual mixed-SKU palletizing

Beverage Distribution

• Ergonomic handling of 20kg case stacks with hip rotation safety lock

Automotive Parts

• Memory-preset pallet patterns for mixed box sizes

Cold Chain Logistics

• Arctic-grade bearings (-40°C operation) with anti-condensation coating

Case Study: Unilever Regional DC

Challenge:

• 35% worker turnover due to palletizing injuries

• 15% buffer overflow at manual stations
  Solution:

• Integrated Gravity+Hip system with RFID pallet tracking
  Results:
  ? Zero MSD injuries in 12 months
  ? 22 cycles/hour sustained throughput
  ? ROI in 9 months

Global Compliance & Value

Certifications:

• ISO 13849 PLc (Safety)

• EN 1004 (Mobile Work Platforms)

• ANSI/ASSE Z244.1 (Ergonomics)

Cost-Saving Advantages:

• Zero Operational Energy: Pure gravity conveyance

• 95% Reduced Maintenance: No motors/drives on conveyor

• Modular Scalability:

• Add powered conveyor segments upstream

• Integrate cobot assist arms

Support & Service

Ergonomic Training:

• On-site biomechanics coaching

• VR simulation for optimal movement patterns

Global Spares Network:

• Roller cartridge replacement kits

• Gas spring modules

• RFID antenna arrays
  Delivery ≤72h via Shanghai/Memphis/Rotterdam hubs

Digital Twin Support:

• IIoT-enabled performance monitoring:

• Operator posture analytics

• Buffer utilization rates

• Pallet build quality scores
