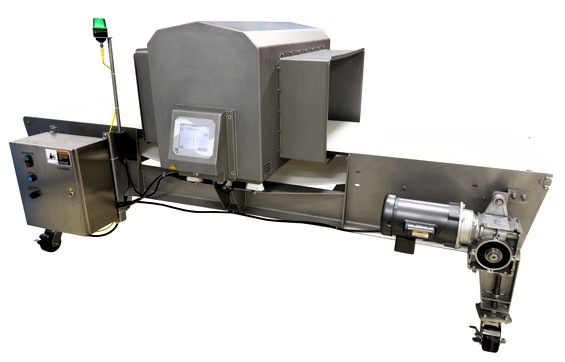

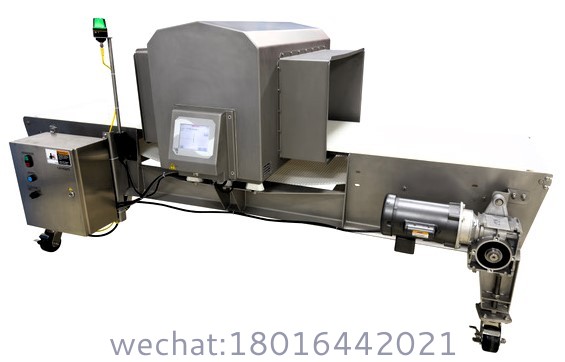

In-Line Metal Detector
Choice Bagging Equipment supplies high-quality, in-line metal detectors which can be integrated into its packaging lines. These machines are designed to identify ferrous or nonferrous (including stain
- Brand： glzon
- Model： GZM
Product Essence: Uncompromising Contaminant Defense
Shanghai Guangzhi Automation’s In-Line Metal Detector delivers ±0.3mm contaminant detection for pipelines carrying food, pharmaceuticals, and chemicals. Engineered with AI Deep Learning Filter? and IP69K stainless steel housing, it achieves ≤0.01% false alarm rate while ensuring FDA 21 CFR Part 117, EU 1935/2004, and HACCP compliance.
Core Technology Innovations
1. Multi-Material Sensitivity
| Contaminant Type | Detection Sensitivity | Key Application |
|---|---|---|
| Ferrous (Fe) | ?0.3mm | Powder/Granule Lines |
| Non-Ferrous (Cu/Al) | ?0.5mm | Viscous Fluid Transfer |
| 316L Stainless Steel | ?0.7mm | Meat Slurries & Emulsions |
2. AI-Powered Intelligence
Deep Learning Filter?:
Trained on 1M+ contaminant signatures
Ignores product effect (e.g. salt crystals, air bubbles)
EMI Immunity:
80dB noise rejection (IEC 61000-4-3 Level 4)
Stable detection near VFDs/motors
3. Hygienic Industrial Design
IP69K Sealed Enclosure:
316L stainless steel (Ra ≤0.4μm)
45° sloped surfaces (EHEDG compliant)
Zero-Contact Rejection:
Pneumatic air-knife (response ≤100ms)
Quick-release clamp for cleaning
Technical Specifications
| Parameter | Pipeline Model | VFFS Model |
|---|---|---|
| Pipe Diameter | DN80–DN200 | N/A |
| Aperture (W×H) | N/A | 400×250mm |
| Flow Rate | 500–3,000 L/min | 0.1–3 m/sec |
| Detection Speed | 100 ms | 100 ms |
| Power Supply | 110–240VAC, 350W | 24VDC, 120W |
| Air Pressure | Not required | 4–6 bar |
| Material Contact | 316L sanitary clamp | FDA UHMW-PE |
| False Alarm Rate | <0.005% | <0.01% |
Industry-Tailored Solutions
| Application | Engineering Focus |
|---|---|
| Frozen Meat Processing | -40°C operation with anti-icing |
| Pharmaceutical Powders | ATEX Zone 22 explosion-proof option |
| Conductive Sauces | Phase-shift compensation algorithm |
| Infant Formula | Double-pulse detection technology |
Smart Control & Compliance
10" FDA-Compliant HMI
Real-time contaminant analytics:
Material classification (Fe/Non-Fe/SUS)
Size estimation (±0.1mm)
Blockchain-integrated reporting:
Automated HACCP/BRC records
QR-code traceability per event
Industry 4.0 Connectivity
OPC UA for SCADA/MES integration
Predictive maintenance alerts:
Coil calibration drift
Seal integrity monitoring
Remote sensitivity tuning via VPN
Operational Impact
German Sausage Producer Case:
Eliminated recalls with 100% detection of 0.5mm Fe in meat emulsion
Achieved <0.005% false alarms
ROI in 5.3 months
Global Compliance & Upgrades
Certifications:
FDA 21 CFR Part 117
EHEDG Doc 8 & ISO 14159
CE EMC/LVD Directives
ISO 22000 (FSSC 22000 Option)
Advanced Modules:
| Module | Function |
|---|---|
| X-Ray Hybrid System | Detects metal/glass/dense plastic |
| Allergen Swab Tester | ATP-based surface contamination check |
| Sterile Barrier Kit | ISO 13408-compliant rejection isolation |
Support & Service
24/7 Global Response:
Remote diagnostics via IIoT gateway
Critical Spares Dispatch ≤48h:
Detection coils
Signal processors
Sanitary housings
Lifetime calibration support
