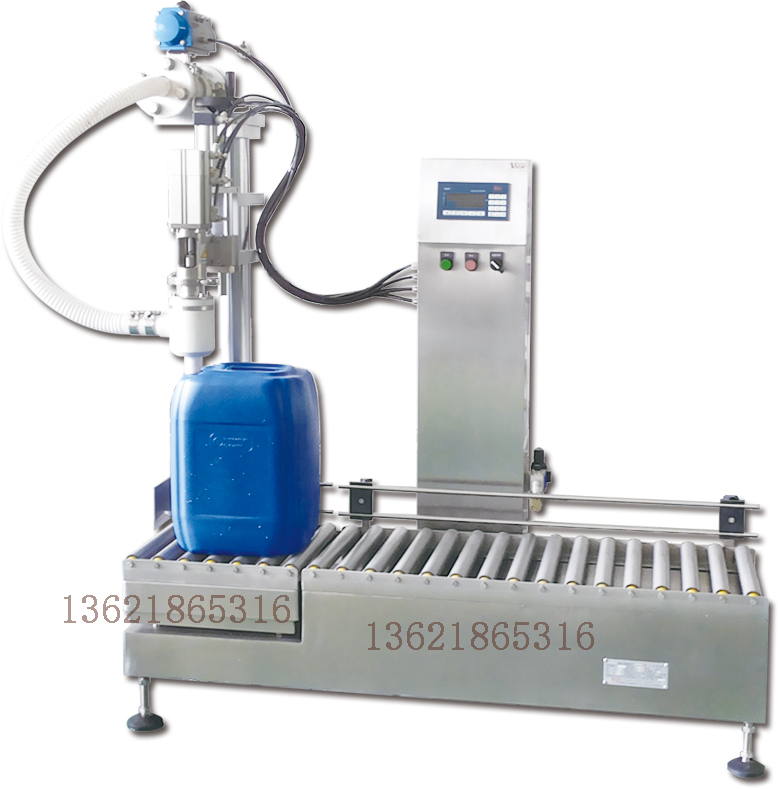

Automatic weighing oil barrel filling machine

Application range: The equipment adopts special B-type valve body filling,which has good stability; it is suitable for filling diluents,curing agents,anti-corrosion paints,automotive paints,etc.,bio-smoke oil,Class C low-viscosity materials,and is suitable for filling liquids of various cans and calibers such as round,square,and flat.

The filling machine is height-adjustable and can be operated by one person,saving costs; you can choose functional modules such as sinking filling,filtering device,automatic capping,and roller conveying.

Applicable barrel type: 0.5~20L iron barrel,plastic barrel,special specification barrels can be customized.

  Ten groups of formulas can be set and stored.

  Two filling methods: net weight,gross weight.

  Two operation modes: automatic,manual.

  Two-level speed of fast,slow feeding.

  Two protections: emergency stop,power off.

  Automatic alarm for over-tolerance.

  Adjustable filling height.

  One-person operation,saving costs.

Applicable barrel type 0.1~25L

Conveying method Stainless steel panel or non-powered roller

Filling speed 4~6 barrels,minute

Filling range 1~25kg

Weighing range 30kg

Explosion-proof requirements Explosion-proof configuration

Power supply 220V

Gas source 0.5Mpa±0.1Mpa
