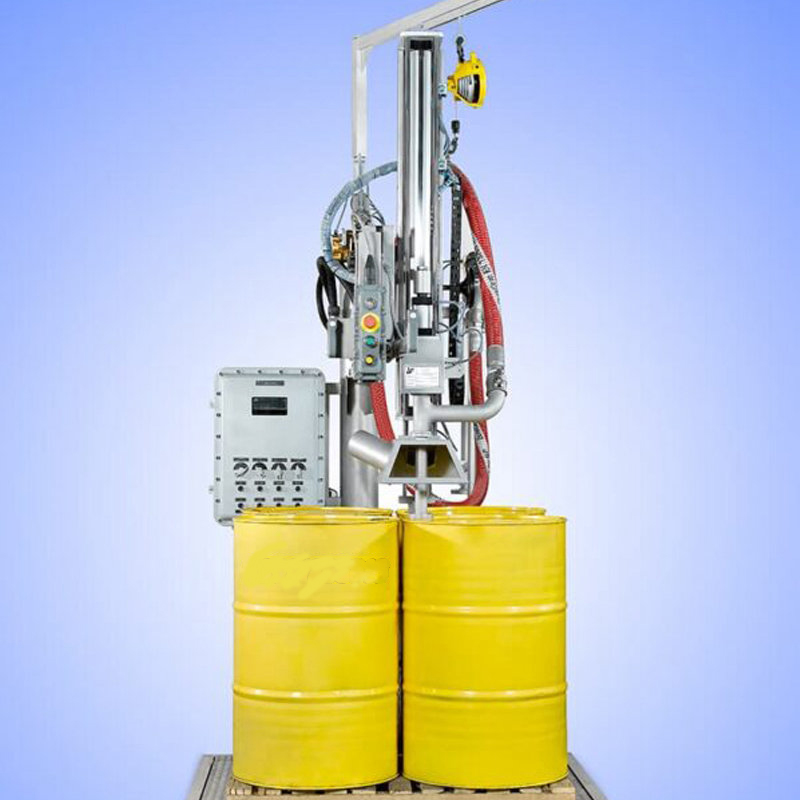

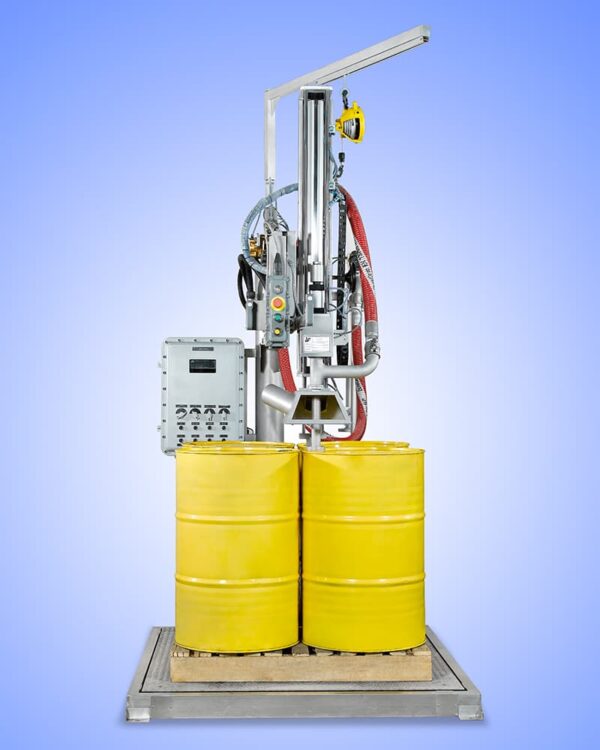

This pallet filler is specially designed for operator to move the filling lance manually for x and y axis easily with minimum effort. Pneumatic Brake system applies when filling position being locked.
Flexible Containment for Zone 1/21 Hazardous Environments
The Guangzhi FlexSafe DSF-5000EX enables precision filling of IBC totes (1,000L) and drums (200L) with flammable solvents, acids, or VOCs. ATEX/IECEx-certified, this semi-automatic system achieves ±0.2% accuracy while capturing 99% fugitive vapors via integrated purification. Ideal for batch operations requiring container flexibility.
| Component | Certification | Protection Feature |
|---|---|---|
| Filling Head | ATEX II 2G Ex de IIC T6 | Grounded static-dissipative nozzles |
| Control Panel | IECEx Ex db IIC T6 | Pressurized enclosure (IP66) |
| Weighing Platform | Ex ia IIC T4 (intrinsic safety) | Overload cut-off at 105% LEL* |
| Vapor Hood | EN 13463-5 (pressure-resistant) | Auto-sealing gasket + N? purge |
| *Lower Explosion Limit |
| Parameter | IBC Mode | Drum Mode |
|---|---|---|
| Capacity | 500–1,500 L | 50–250 L |
| Accuracy | ±0.2% (Coriolis meter) | ±0.3% (load cell) |
| Flow Rate | 200 L/min | 100 L/min |
| Max Viscosity | 5,000 cP (heated option) | 10,000 cP |
| Containers | UN-certified IBCs (pallet-mounted) | Steel/plastic drums |
| Power | 380V/50Hz, 8.5 kW | |
| Vapor Recovery | >99% (carbon adsorption) | |
| Changeover Time | 10 min (tool-free) |
Dual-Container Flexibility: Hydraulic height adjustment (500–1,800 mm)
Operator Safety:
Hands-free grounding verification (<10 Ω)
Emergency stop + gas detection interlock
Smart Purification:
Real-time VOC monitoring (PID sensor)
Regenerative carbon beds (85% solvent recovery)
Hygienic Design:
316L SS fluid path
Sloped drip tray with chemical drain
| Metric | DSF-5000EX | Manual Filling |
|---|---|---|
| Throughput | 15 IBCs or 30 drums/hr | 4 IBCs or 8 drums/hr |
| VOC Exposure | <1 ppm (operator area) | 50–200 ppm |
| Spill Risk | 0.05% | 1.5–3% |
| Labor | 1 operator | 3 workers + safety gear |
Chemical Solvents: Acetone, toluene, MEK
Pharma Intermediates: Isopropanol, DMSO
Battery Electrolytes: LiPF? solutions, NMP
Waste Recycling: Spent acids, halogenated VOCs
? One-System Solution: Switch between IBC/drum in minutes
? Regulatory Compliance: Pre-validated for ATEX, OSHA 1910.106, and SEVESO III
? Cost Control: 50% lower capex vs. fully automated lines
? Zero Downtime: Hot-swappable filter cartridges
Nitrogen Inerting Kit: O? < 0.1% for pyrophorics
Ex-Proof Label Printer: GHS hazard labeling
Robotic Arm Assist: For heavy IBC positioning
IoT Connectivity: Cloud-based batch reporting (CFR 21 Part 11)
