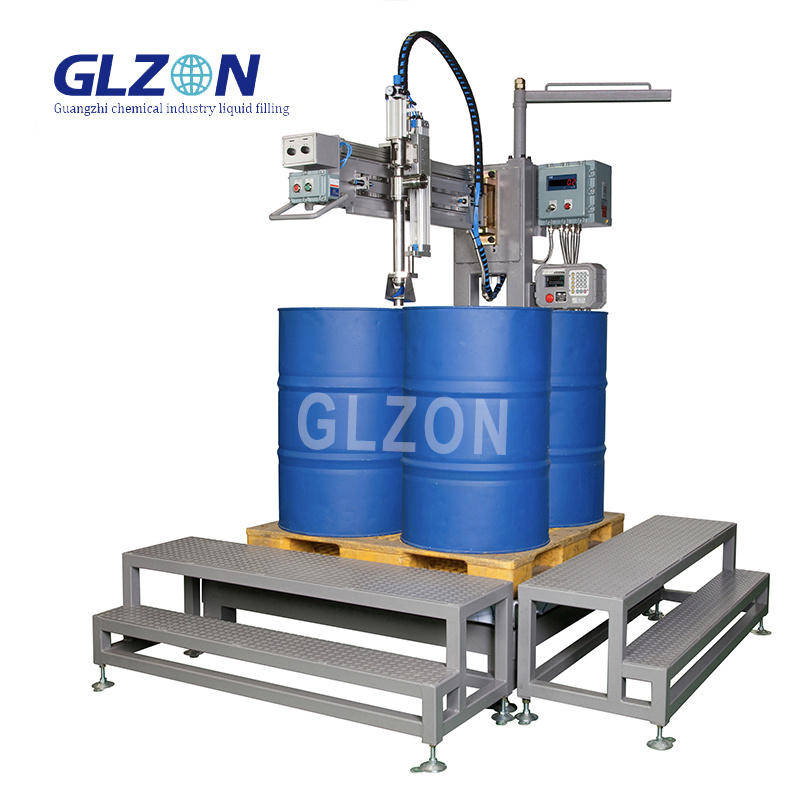

Semi Automatic 1000L IBC Motor Oil Weighing Filling Machine
Semi-auto IBC filler for 1000L motor oil. ±0.1% weighing accuracy, heated flow path & anti-static design. 12 fills/hour. API/ISO compliant.
- Brand： glzon
- Model： GZM_1000L
Product Essence: Precision Engineered for Engine Oils
Shanghai Guangzhi Automation’s Semi-Automatic IBC Filler delivers ±0.1% gravimetric accuracy for filling 1000L IBC totes with ISO VG 32-680 engine oils. Combining heated viscosity control (40-60°C), servo-driven piston filling, and anti-static safety systems, it achieves 12 fills/hour while eliminating air entrainment and ensuring API/SAE compliance.
Core Technology Innovations
1. Intelligent Viscosity Management
| System | Technical Advantage |
|---|---|
| Heated Flow Path | Jacketed pipes & hopper (40-60°C ±1°C) |
| Servo Piston Filling | Adjusts speed for 50-50,000 cP |
| Vacuum Degassing | Reduces air entrainment by 95% |
| Density Compensation | Auto-adjusts for temperature (±0.5 kg/m3) |
2. Precision Weighing Performance
Multi-Cell Load System:
4× OIML R60 Class 0.5 load cells (±0.05%)
Auto-tare for IBC weight variations (±2kg)
Drip-Free Shutoff:
Double-seal needle valve
Residual oil ≤5ml
3. Industrial Reliability
Anti-Static Design:
Conductive hoses (<10? Ω)
Auto-grounding verification (<10Ω)
Heavy-Duty Construction:
Hardox 450 wear plates
IP65-rated electronics
Technical Specifications
| Parameter | Standard Model | High-Viscosity Model |
|---|---|---|
| Filling Range | 500-1000L (±0.1%) | 500-1000L (±0.15%) |
| Oil Viscosity | ISO VG 32-460 | ISO VG 150-680 |
| Throughput | 12 fills/hour | 10 fills/hour |
| Heating Power | 6kW (40-60°C) | 8kW (50-80°C) |
| Power Supply | 380V/50Hz, 5.5kW | 380V/50Hz, 7.2kW |
| Air Consumption | 90 L/min @ 0.6MPa | 100 L/min @ 0.6MPa |
| Accuracy | ±0.1% of setpoint | ±0.15% of setpoint |
| Footprint (L×W×H) | 3200×2000×2800mm | 3200×2000×2800mm |
Oil-Specific Engineering
| Challenge | Guangzhi Solution |
|---|---|
| Foaming | Low-pressure filling + vacuum degassing |
| Cold Weather Pouring | Heated nozzles (60°C) |
| Additive Separation | In-line static mixer |
| Static Ignition Risk | Conductive filters + grounding alarms |
Smart Control System
10" HMI with Oil Formulation Library
Real-Time Monitoring:
Viscosity-temperature curve
Density compensation tracking
Fill accuracy analytics
Predictive Alerts:
Piston seal wear
Heater efficiency degradation
Safety & Compliance
Overfill Protection:
Dual redundant load cell cutoff
Emergency stop foot pedal
Data Logging:
Batch records (API 682 compliant)
Calibration history
Operational Impact
German Lubricant Blender Case:
Reduced giveaway from 0.8% to 0.1%
Eliminated 100% foam-related underfills
ROI in 10 months via reduced rework
Global Compliance & Upgrades
Certifications:
OIML R60 Class 0.5
API Standard 682 (Seals)
CE Machinery Directive
ISO 9001:2015
Critical Options:
| Module | Function |
|---|---|
| Inline Viscometer | Real-time viscosity (±2 cP) |
| Nitrogen Blanketing | O? <0.1% for synthetic oils |
| Robotic Tote Handling | Auto-positioning for ergonomics |
| AR Maintenance Guide | HoloLens-assisted seal replacement |
Support & Service
24/7 Lubricant Sector Support:
Remote diagnostics via IIoT gateway
Critical Spares Dispatch ≤48h:
Heated nozzles
Load cells
Piston seals
Oil Adhesion Optimization:
Surface tension testing
Drip prevention protocols
APPLICABLE BARREL TYPE
